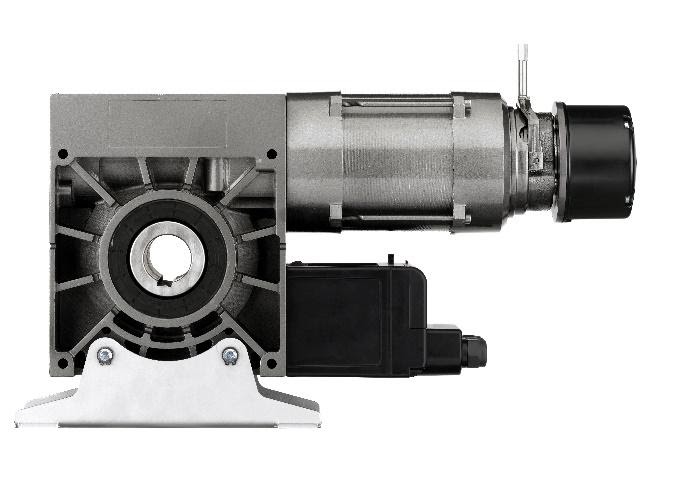

MTZ 30-32-60 FU-E High Speed Door Motor with Safety Catch Device

HIGH-SPEED DOOR MOTOR WITH FREQUENCY CONVERTER

FEATURES
  • Heavy Duty 3 Phase Motor 400V
  • Motor Speed 60Rpm @ 50Hz (adjustable frequency)
  • High holding force via additional magnetic brake
  • Integrated Safety Catch Device in Gearbox
  • Programmable ENCODER limits (AWG)
  • Option of emergency hand crank or hand chain override
  • Modular conversion option from crank to chain
  • Thermal overload protection
  • CS320 FU-E Controller with 3kW Siemens frequency converter.
  • Simple Programming via LCD Display
  • 3 Command Control Buttons
  • Other torque models available by request



SPECIFICATIONS
VOLTAGE 400V AC @ 50Hz (Three Phase)
CURRENT RATING 6.5 A
DRIVE TORQUE 320Nm @ 50Hz
MOTOR OUTPUT 2.2 kW
DUTY CYCLE <20 operations / Hour 40mm
SHAFT DIAMETER 40mm
PROTECTION IP54
DIMENSIONS 619 x 190 x 335mm
WEIGHT 32Kg
TEMPERATURE RANGE -20º to +60ºC
(The Company reserves the right to amend product specifications and information without notice.)

Downloadable Resources

Download Spec Sheet

Product details

HIGH-SPEED DOOR MOTOR WITH FREQUENCY CONVERTER

FEATURES
  • Heavy Duty 3 Phase Motor 400V
  • Motor Speed 60Rpm @ 50Hz (adjustable frequency)
  • High holding force via additional magnetic brake
  • Integrated Safety Catch Device in Gearbox
  • Programmable ENCODER limits (AWG)
  • Option of emergency hand crank or hand chain override
  • Modular conversion option from crank to chain
  • Thermal overload protection
  • CS320 FU-E Controller with 3kW Siemens frequency converter.
  • Simple Programming via LCD Display
  • 3 Command Control Buttons
  • Other torque models available by request



SPECIFICATIONS
VOLTAGE 400V AC @ 50Hz (Three Phase)
CURRENT RATING 6.5 A
DRIVE TORQUE 320Nm @ 50Hz
MOTOR OUTPUT 2.2 kW
DUTY CYCLE <20 operations / Hour 40mm
SHAFT DIAMETER 40mm
PROTECTION IP54
DIMENSIONS 619 x 190 x 335mm
WEIGHT 32Kg
TEMPERATURE RANGE -20º to +60ºC
(The Company reserves the right to amend product specifications and information without notice.)

Downloadable Resources

Download Spec Sheet

Additional information

Weight 37 kg
Dimensions 53,6 × 12,2 × 33,5 cm
