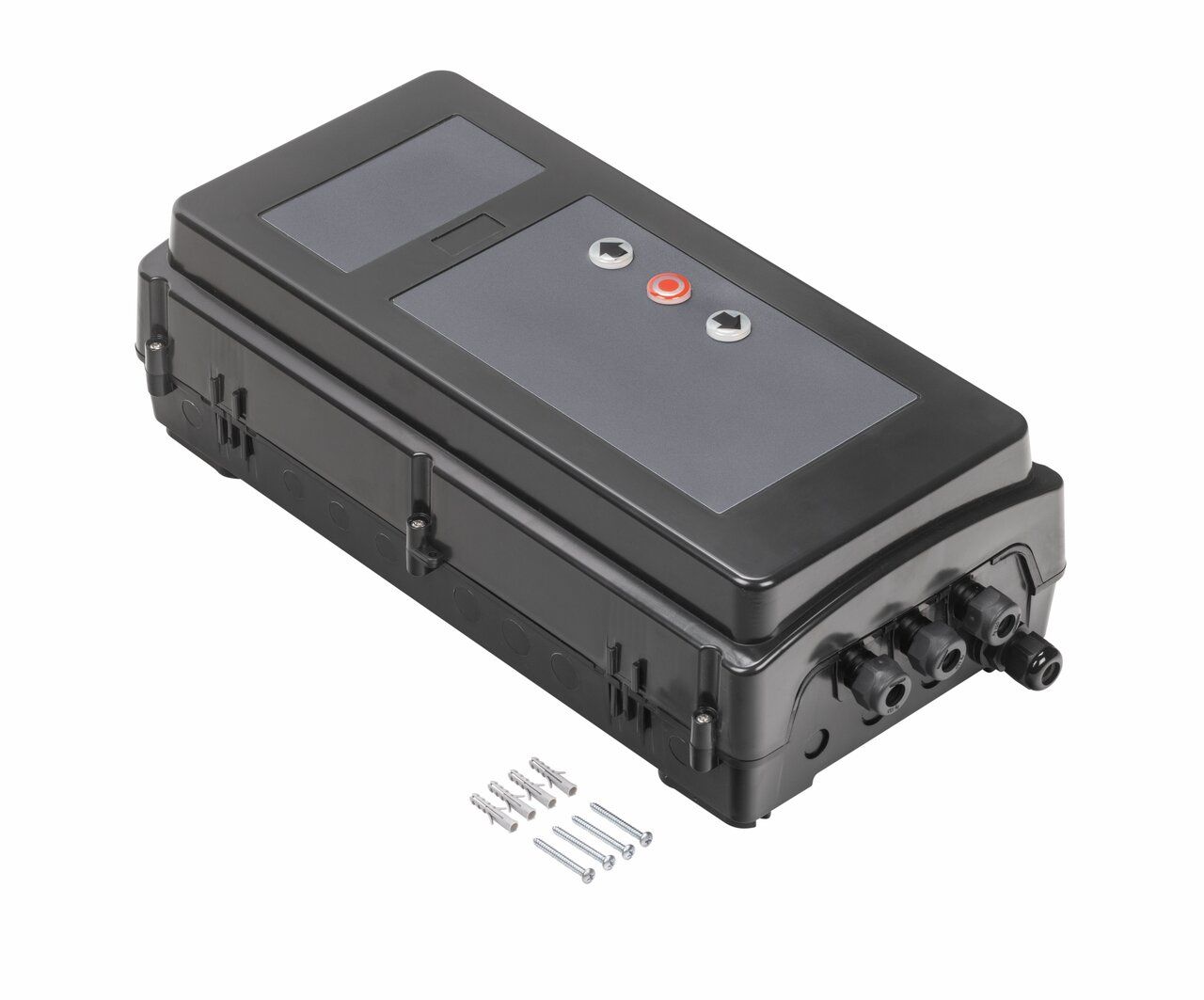

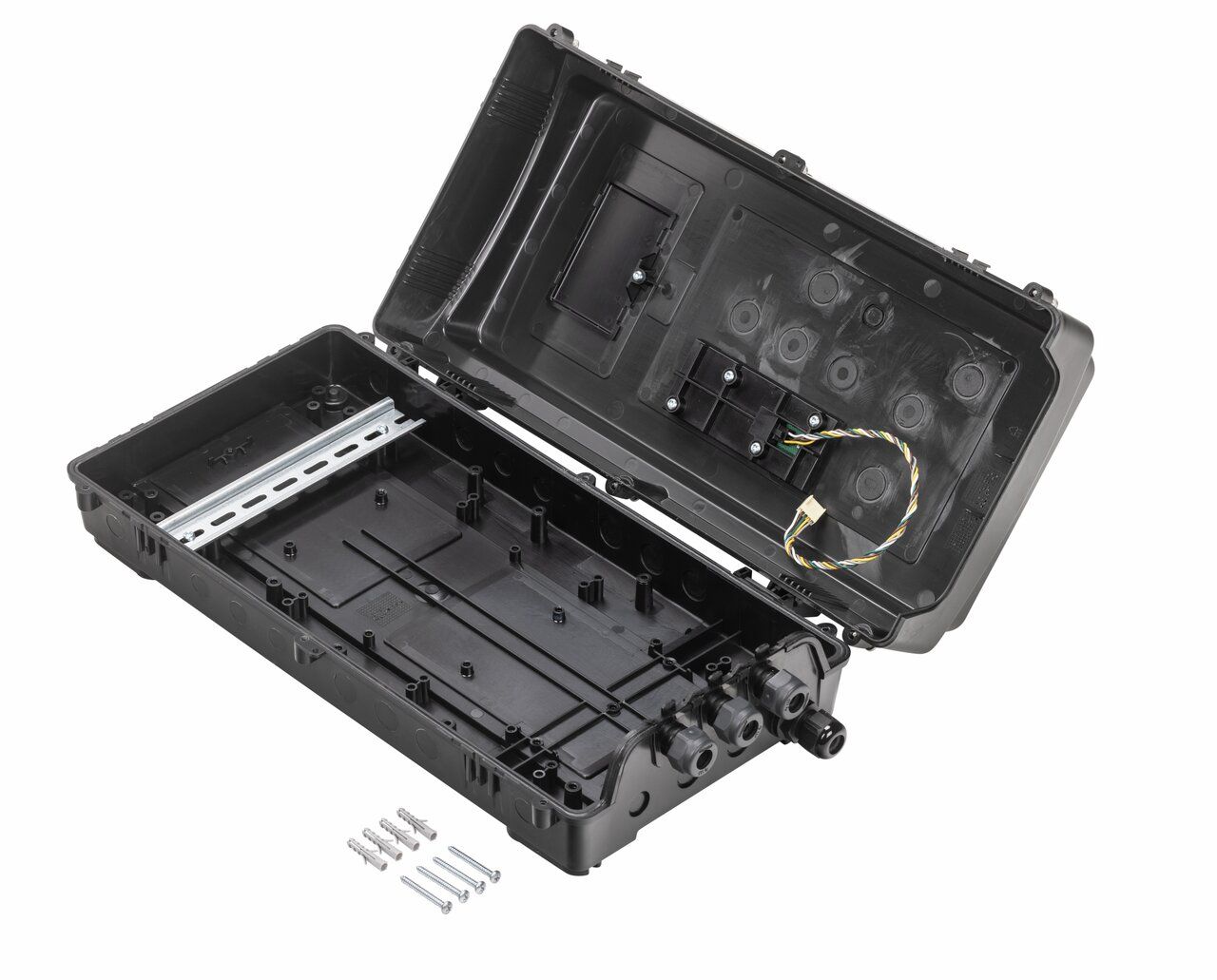

Marantec CS320 Kombi Enclosure (Control Panel Housing)
R3 306,25 Incl. VAT
The Marantec CS320 Kombi Enclosure is a robust industrial control panel housing for the CS 320 industrial door controller. Designed for commercial and industrial sectional, roller shutter, and high‑duty doors, it provides a secure combined housing with integrated button panel.
Enclosure (Kombi housing)
- Protection rating: IP65 (dust-tight, water jet resistant)
- Typical dimensions (Kombi housing):
- ~245 × 455 × 190 mm (W × H × D)
- Mounting: Wall-mounted with adjustable brackets
- Material: Industrial plastic enclosure (standard), optional steel cabinet
- User interface on cover:
- 3-button station (Open / Stop / Close)
- Illuminated buttons for visibility
(The Company reserves the right to amend product specifications and information without notice.)
Product details
The Marantec CS320 Kombi Enclosure is a robust industrial control panel housing for the CS 320 industrial door controller. Designed for commercial and industrial sectional, roller shutter, and high‑duty doors, it provides a secure combined housing with integrated button panel.
Enclosure (Kombi housing)
- Protection rating: IP65 (dust-tight, water jet resistant)
- Typical dimensions (Kombi housing):
- ~245 × 455 × 190 mm (W × H × D)
- Mounting: Wall-mounted with adjustable brackets
- Material: Industrial plastic enclosure (standard), optional steel cabinet
- User interface on cover:
- 3-button station (Open / Stop / Close)
- Illuminated buttons for visibility
(The Company reserves the right to amend product specifications and information without notice.)
Additional information
| Dimensions | 21,5 × 27,5 × 13 cm |
|---|
