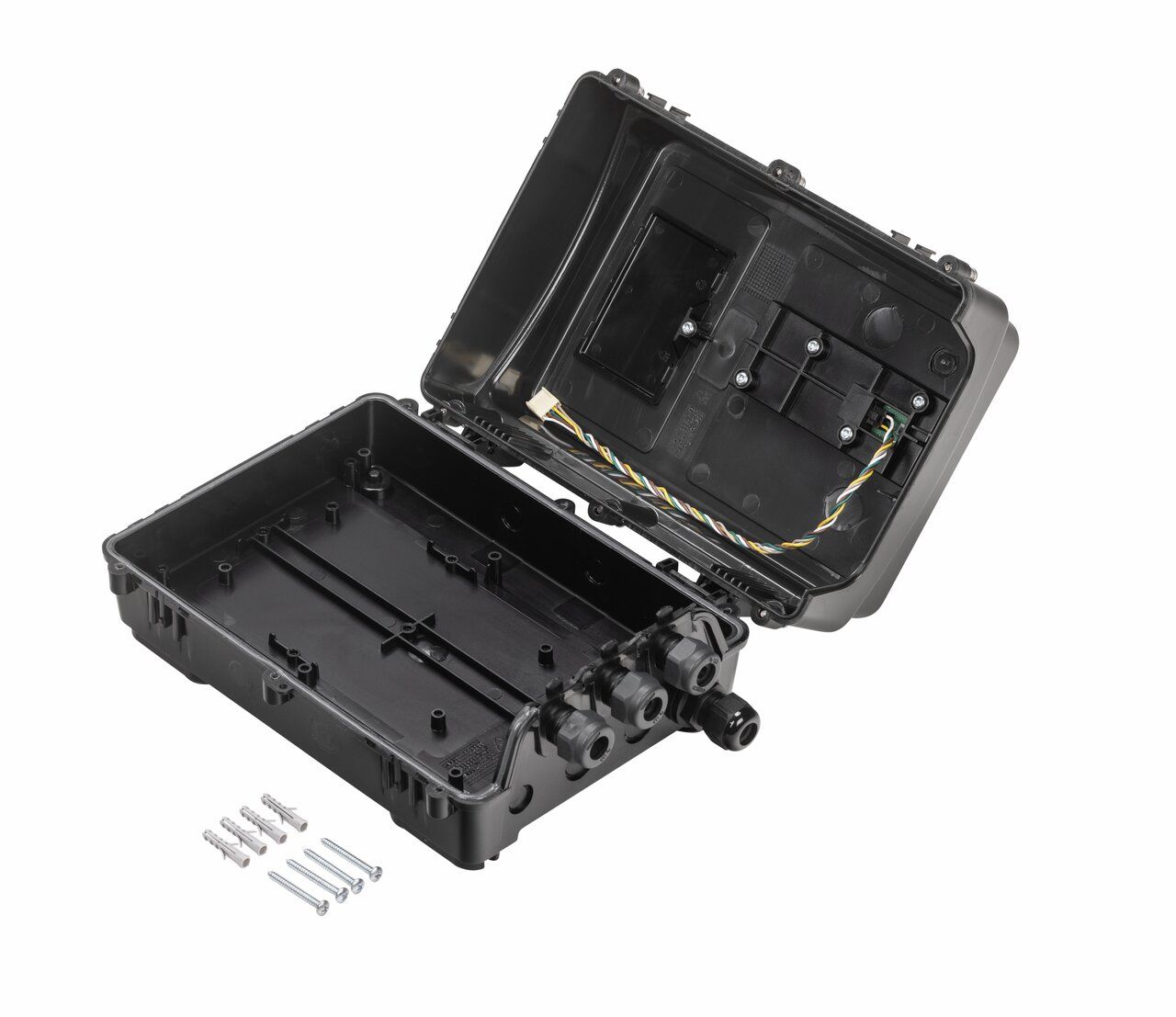

The CS320 Standard Enclosure is suited to fitment of the CS320 controller PCB with LCD.

Features:

• Hinged cover with locking screws
• Removable window cover (conceals the LCD)
• Modular cable glands

---

Enclosure (Housing) Specifications

Physical Construction

• Wall-mounted industrial control cabinet
• Integrated:
  • Main switch
  • Buttons (OPEN / STOP / CLOSE)
  • Status LEDs / optional LCD
• Pre-mounted internal PCB and wiring

Dimensions

• Approx: 215 × 275 × 190 mm

Protection Rating

• IP65 (dust-tight, water-resistant)

Environmental

• Operating temperature: -20°C to +60°C

 This makes it suitable for:

• Industrial environments
• Outdoor (protected) mounting
• Harsh warehouse conditions

---

Core Function (Control + Position Logic)

The CS320 enclosure contains the entire control system, responsible for:

Door Control

• Open / Close / Stop logic
• Motor direction control
• Brake handling

Position Handling

Supports:

• MEC (mechanical limit switches)
• AWG / digital encoder systems

 One of its defining features is compatibility with both mechanical and electronic positioning systems.



(The Company reserves the right to amend product specifications and information without notice.)
