VTA 11-72 Sectional Door Motor 24V Hand Chain CS-I 15 (364Kgs max.)

The Marantec VTA 11-72 is the first of Marantec's premium DC direct-drive operators, designed for heavy sectional doors. These operators are perfectly suited for use in light industrial applications.



Features:

• Easy installation
• Torsion Shaft Driven (25.4mm x 6.35 key)

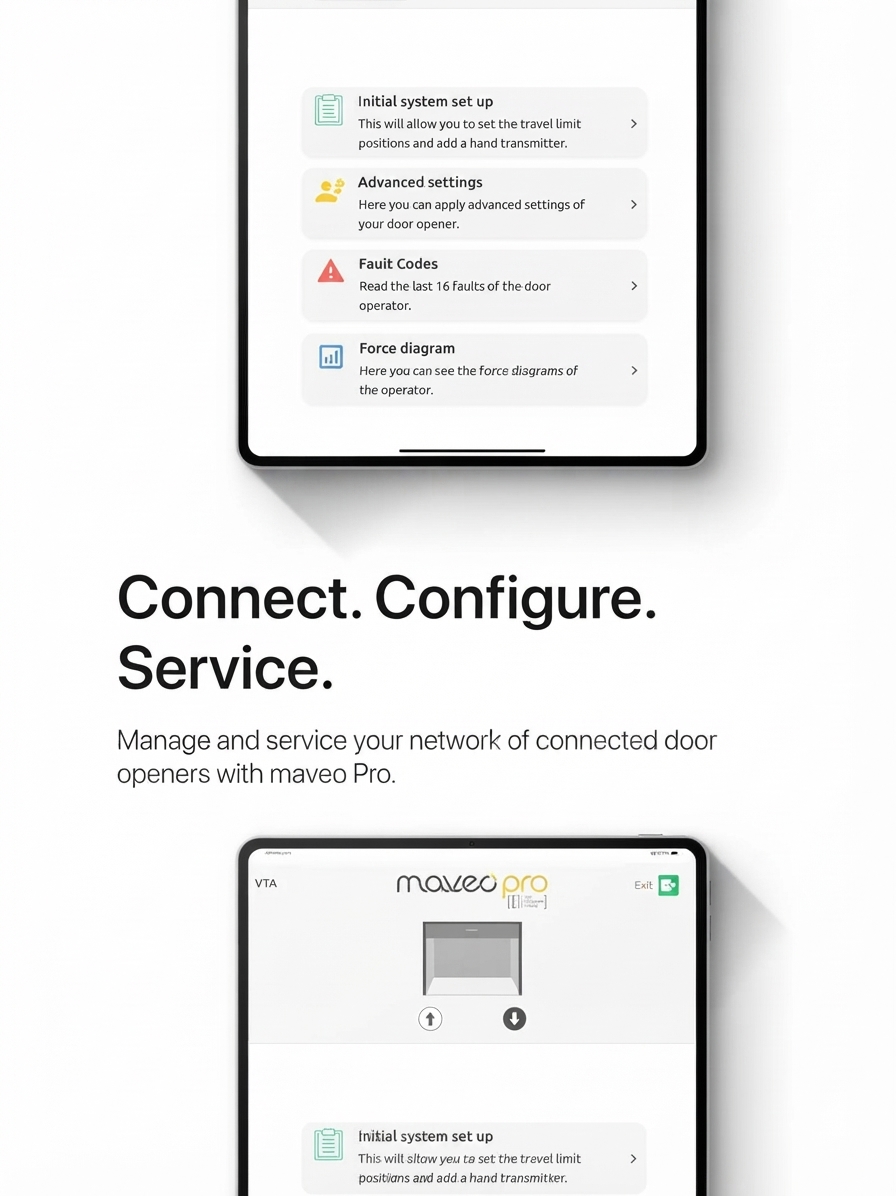

• Programming by Bluetooth App (Maveo Pro)
• Command 108 Programmer Module (optional).
• Soft start and soft stop
• Obstacle sensing feature
• Accurate programmable encoder limits
• Diagnostic Feature
• Adjustable speed
• Quiet operation
• 1x programmable input
• 1x Light Relay

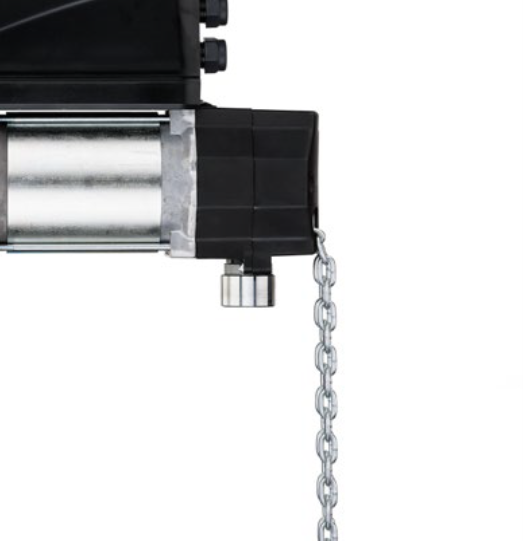

• Emergency hand Chain
• Battery backup optional- See backup 700

Backup 700:

https://www.dortech.co.za/product/marantec-back-up-700/

YOUTUBE VIDEO LINK

Video: VTA Programming Instruction



Specifications



Supply voltage	230V AC – 50Hz
Control voltage	24VDC
Motor power	0.28kW
Output Torque	25 Nm
Speed	19Rpm
Lifting Capacity	Cable drum <160mm  - 364kgs Cable drum <220mm  - 260kgs
Temperature range	-20°C to +60°C
Protection	IP54
Duty Cycle	20 Cycle per Hour
Manual Override	Emergency Hand chain
Battery backup- Optional	Backup 700 -7AH 24V

(The Company reserves the right to amend product specifications and information without notice.)

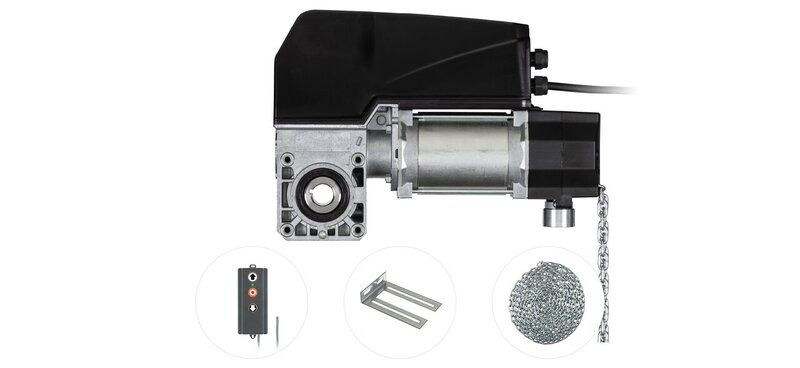

ITEMS IN KIT:

1x VTA 11-72 Motor with

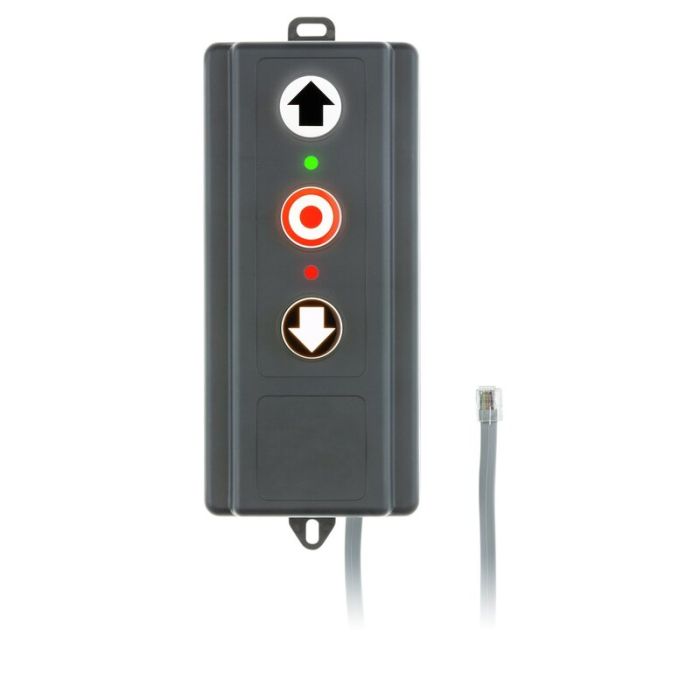

1x CS-i 15 Push button station (7m cable)

1x Torque mounting bracket

1x Command 108 Programmer
