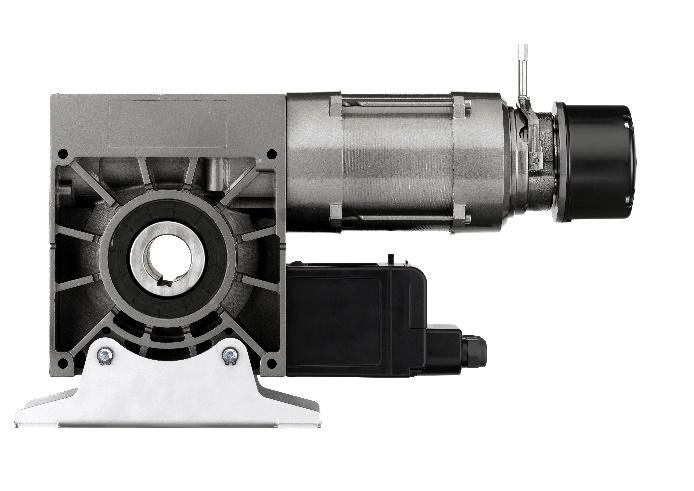

MTZ 30-18-60 FU-E High Speed Motor Drive with Safety Catch Device

MTZ 30-18-60 FU-E High Speed Motor Drive with Safety Catch Device

Request a quote

HIGH-SPEED DOOR DRIVE For Operation With a Frequency Convertor

FEATURES
Heavy Duty (HD) High holding force via additional magnetic brake Integrated Safety Catch Programmable limits (AWG) Emergency hand crank or hand chain for emergency operation Straightforward conversion from crank to chain Thermal overload protection Higher Torque models available Custom versions on request
SPECIFICATIONS
VOLTAGE	400V AC @ 50Hz (Three Phase)
CURRENT RATING	4.2 A
DRIVE TORQUE	180Nm @ 50Hz
MOTOR OUTPUT	2.2 kW
DUTY CYCLE	<20 operations / Hour 40mm
SHAFT DIAMETER	40mm
PROTECTION	IP54
DIMENSIONS	599 x 190 x 335mm
WEIGHT	30Kg
TEMPERATURE RANGE	-20º to +60ºC

(The Company reserves the right to amend product specifications and information without notice.)

Downloadable Resources

Download Spec Sheet

CategoriesIndustrial Door Motors, MTZ High Speed Drives

Product details

HIGH-SPEED DOOR DRIVE For Operation With a Frequency Convertor

FEATURES
Heavy Duty (HD) High holding force via additional magnetic brake Integrated Safety Catch Programmable limits (AWG) Emergency hand crank or hand chain for emergency operation Straightforward conversion from crank to chain Thermal overload protection Higher Torque models available Custom versions on request
SPECIFICATIONS
VOLTAGE	400V AC @ 50Hz (Three Phase)
CURRENT RATING	4.2 A
DRIVE TORQUE	180Nm @ 50Hz
MOTOR OUTPUT	2.2 kW
DUTY CYCLE	<20 operations / Hour 40mm
SHAFT DIAMETER	40mm
PROTECTION	IP54
DIMENSIONS	599 x 190 x 335mm
WEIGHT	30Kg
TEMPERATURE RANGE	-20º to +60ºC

(The Company reserves the right to amend product specifications and information without notice.)

Downloadable Resources

Download Spec Sheet

Additional information

Weight	37 kg
Dimensions	53,6 × 12,2 × 33,5 cm

MTZ-FU-30-18-120-HD-HIGH-SPEED-DOOR-OPERATORS-SPECIALIZED-DOOR-OPERATORS-22072022-DCDocument · 122 KBView Download
