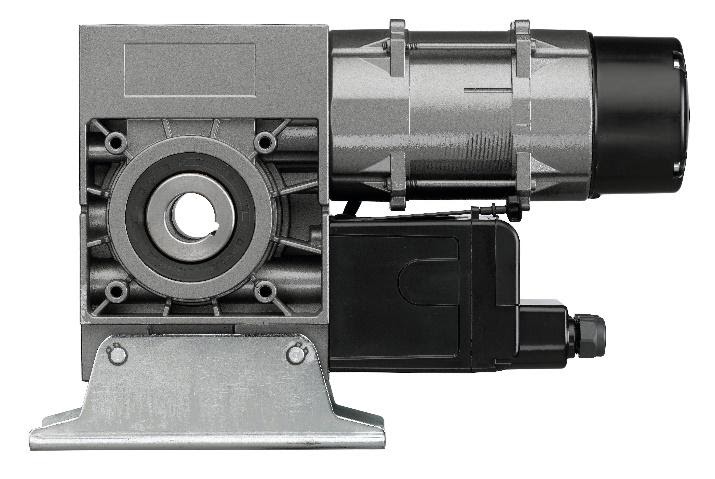

MDF 20-15-12 HD Roller Shutter Motor with Safety Catch Device
Hight endurance direct drive automation for spring balanced roller shutters, with integrated limit switches, integrated safety catch. Available with hand crank or chain manual override option.
Specifications: High Use (HD); Integrated Limit Switches; Crank or Chain Manual Override Options; Voltage: 380V AC @ 50 Hz (Three Phase); Current: INPUT 1.8 A; Torque: 150 Nm
| FEATURES | |
|
|
| SPECIFICATIONS | |
| VOLTAGE | 380V AC @ 50 Hz (Three Phase) |
| CURRENT INPUT | 1.8 A |
| TORQUE | 150 Nm |
| MOTOR OUTPUT | 0.55 kW |
| SPEED | 12 Rpm |
| DUTY CYCLE | 80% > 30 operations / Hr (Dependent on door size) |
| SHAFT DIAMETER | 30 mm (8mm keyway) |
| PROTECTION | IP54 |
| DIMENSIONS | 438 x 136 x 317 mm |
| WEIGHT | 19 Kg |
(The Company reserves the right to amend product specifications and information without notice.)
Downloadable Resources
Product details
Hight endurance direct drive automation for spring balanced roller shutters, with integrated limit switches, integrated safety catch. Available with hand crank or chain manual override option.
Specifications: High Use (HD); Integrated Limit Switches; Crank or Chain Manual Override Options; Voltage: 380V AC @ 50 Hz (Three Phase); Current: INPUT 1.8 A; Torque: 150 Nm
| FEATURES | |
|
|
| SPECIFICATIONS | |
| VOLTAGE | 380V AC @ 50 Hz (Three Phase) |
| CURRENT INPUT | 1.8 A |
| TORQUE | 150 Nm |
| MOTOR OUTPUT | 0.55 kW |
| SPEED | 12 Rpm |
| DUTY CYCLE | 80% > 30 operations / Hr (Dependent on door size) |
| SHAFT DIAMETER | 30 mm (8mm keyway) |
| PROTECTION | IP54 |
| DIMENSIONS | 438 x 136 x 317 mm |
| WEIGHT | 19 Kg |
(The Company reserves the right to amend product specifications and information without notice.)
Downloadable Resources
Additional information
| Weight | 19 kg |
|---|---|
| Dimensions | 43,8 × 13,6 × 31,7 cm |
