The CS320 is a specialised electronic controller which was developed for use on Single phase or Three phase motor systems.

Suitable for used on roller shutters, sectional doors & sliding gates:

Features:

• LCD programming module (removable)
• Diagnostics & error messaging
• 4 Programmable relay outputs
• 2 programmable inputs with 27 functions
• Adjustable operating modes
• Door cycle counter
• Programmable maintenance alarm
• Connections for various safety device inputs
• Connections for various command accessories
• Hinged Housing cover with locking screws
• Modular cable glands
• Max load capacity 2.2Kw (8A)

Physical Construction

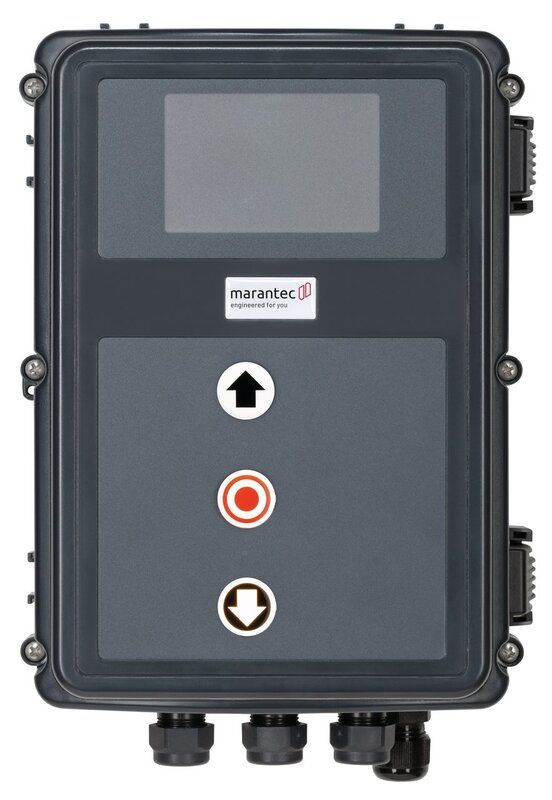

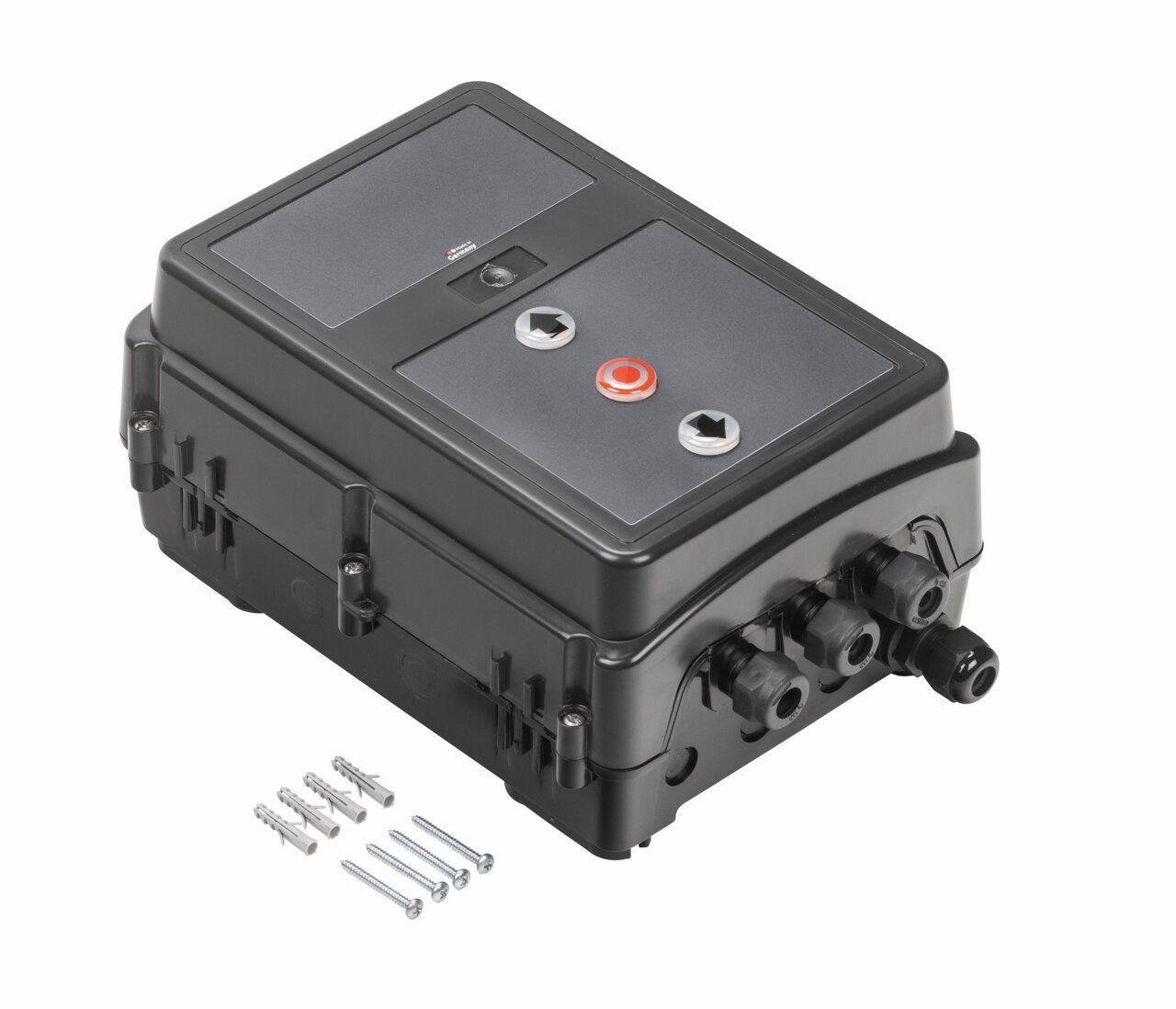

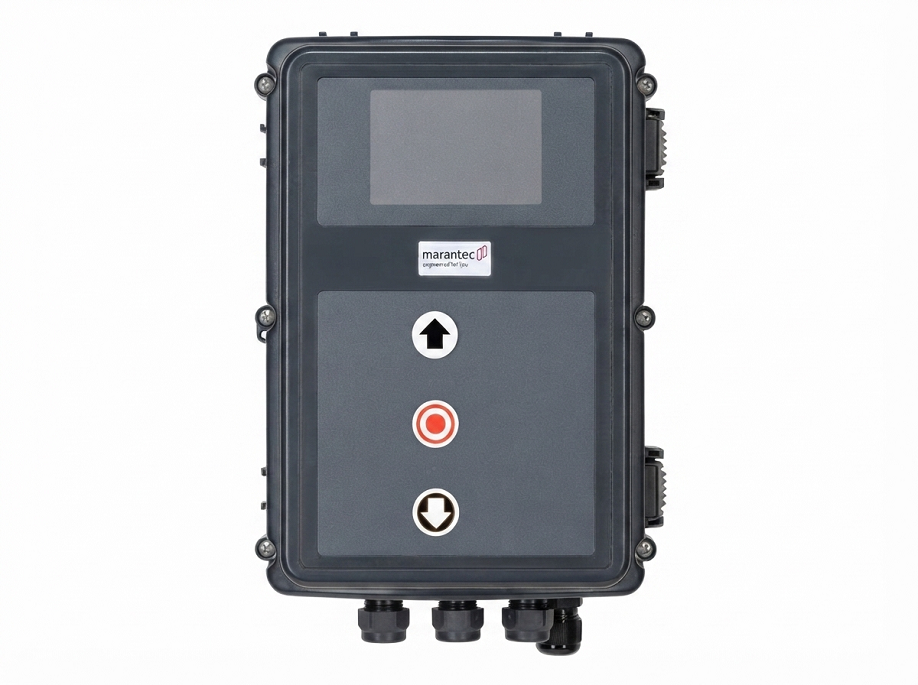

• Wall-mounted industrial control cabinet
• Integrated:
  • Main switch
  • Buttons (OPEN / STOP / CLOSE)
  • Status LEDs / optional LCD

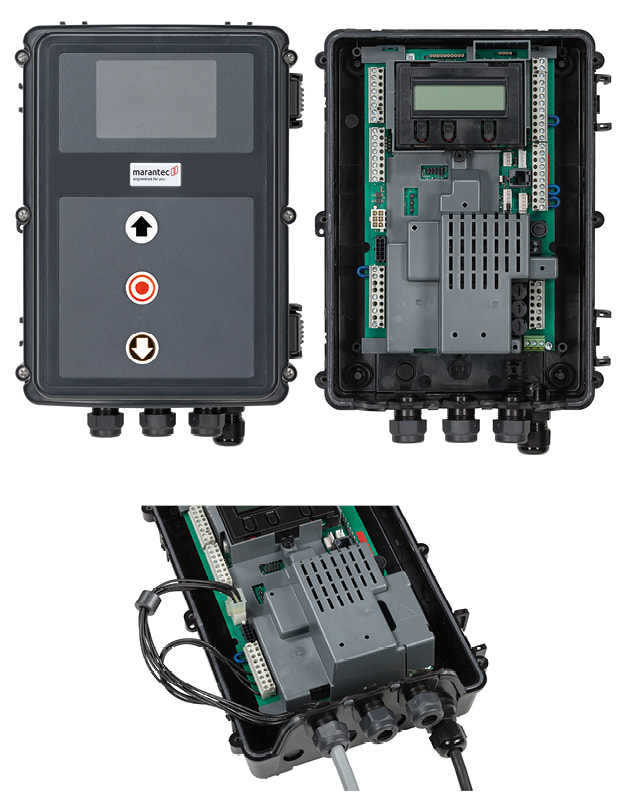

• Pre-mounted internal PCB and wiring

Dimensions

• Approx: 215 × 275 × 190 mm

Protection Rating

• IP65 (dust-tight, water-resistant)

Environmental

• Operating temperature: -20°C to +60°C

---

Core Function (Control + Position Logic)

The CS320 enclosure contains the entire control system, responsible for:

Door Control

• Open / Close / Stop logic
• Motor direction control
• Brake handling

Position Handling

Supports:

• MEC (mechanical limit switches)
• AWG / digital encoder systems

 One of its defining features is compatibility with both mechanical and electronic positioning systems.
