ECONO 800 Motor Kit - Roller Shutters
Price range: R9 880,23 through R18 768,00 Incl. VAT
Economy chain drive operator for sprung balanced roller shutters up to 600 kg, with mechanical limits and quick release mechanisms.
| FEATURES | |
|
|
| SPECIFICATIONS | |
| VOLTAGE | 220V AC (1 phase); 380V AC (3 phase) |
| CURRENT INPUT | 3A |
| OUTPUT TORQUE | Dependant on Drive Ratio |
| MOTOR PROTECTION | Thermal overload protection |
| MOTOR OUTPUT | 0.55kW |
| IP RATING | IP20 |
| MOTOR SPROCKET | 9 Tooth |
| DOOR SPROCKET
(2 options) |
38T 10B1 (Standard)
48T 10B1 (for heavier doors) |
| SPEED | ±8Rpm (at supplied drive ratio) |
| DUTY CYCLE | < 5 operations / Hr (Dependant on door size) |

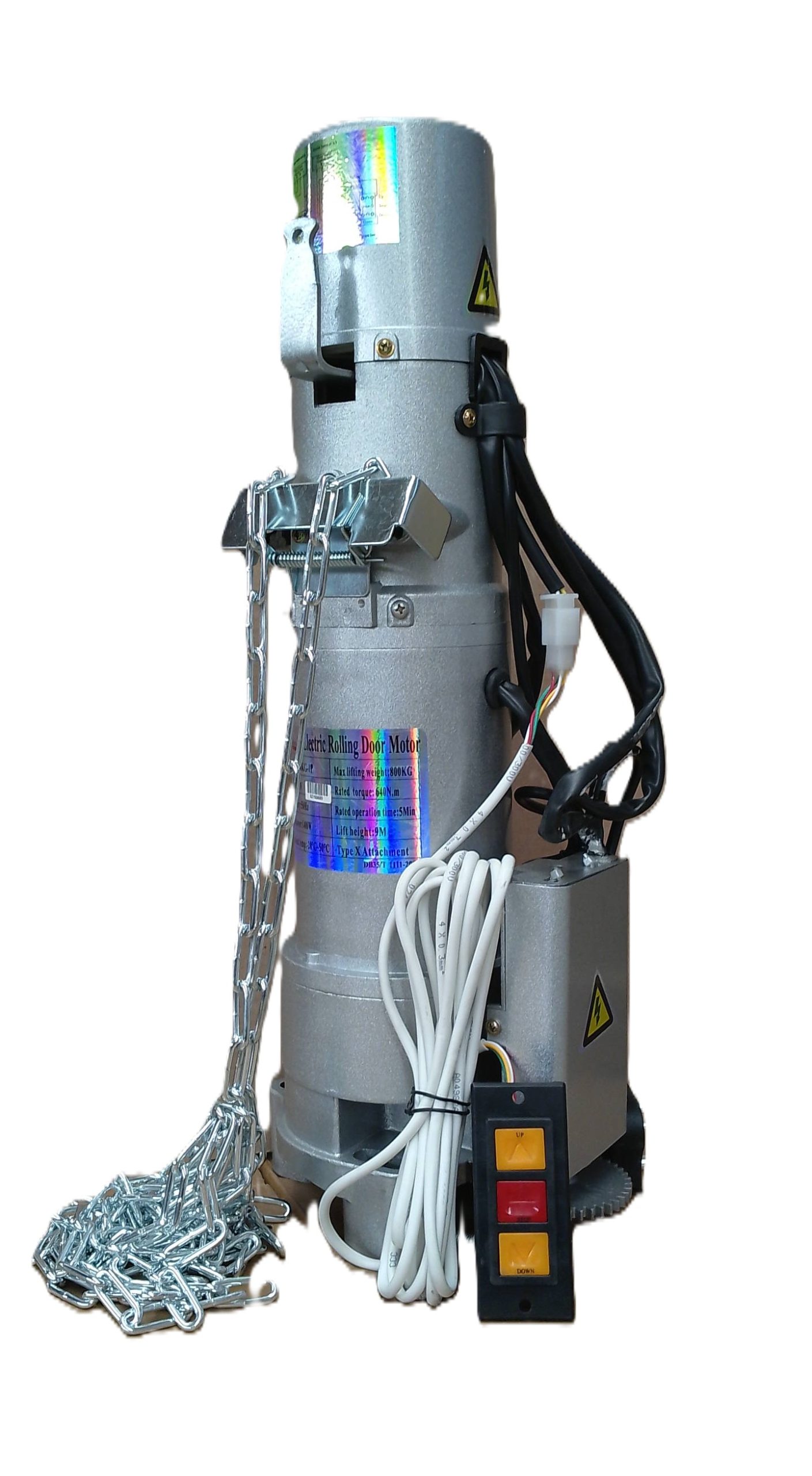

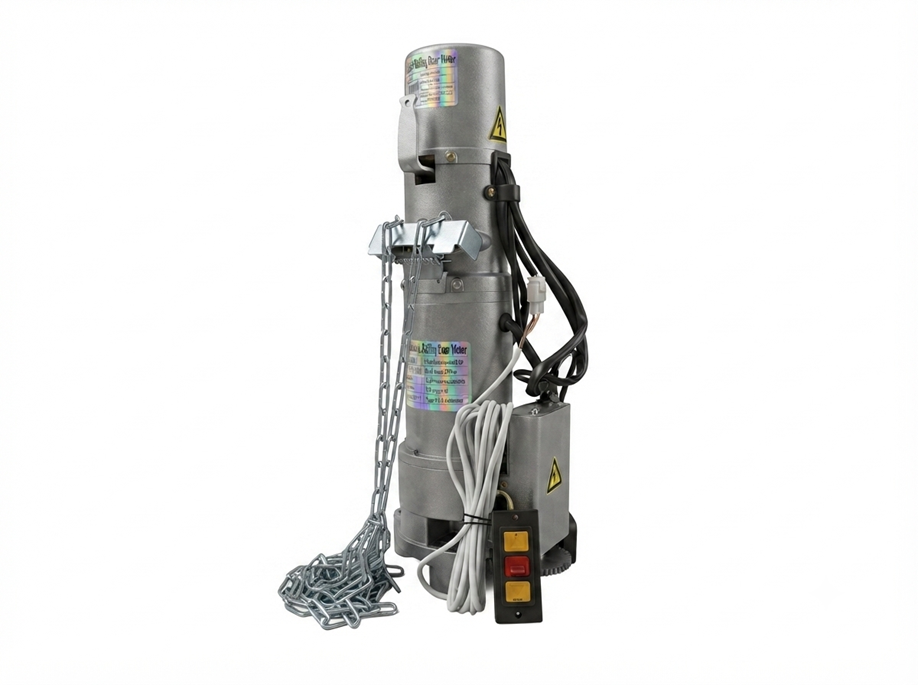

NB: Picture used for illustrative purposes and may vary slightly from actual item.
(The Company reserves the right to amend product specifications and information without notice.)
ITEMS IN KIT:
1x Motor with Push button station (4m cable)
1x Lockable Push button box
1x Mounting Kit

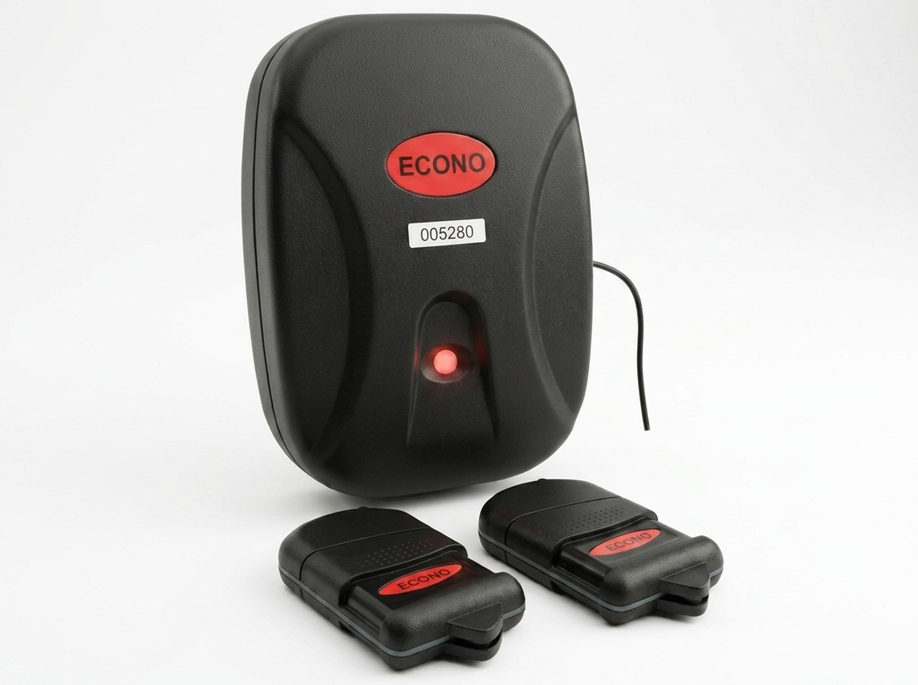

1x Remote Kit (2 remotes)

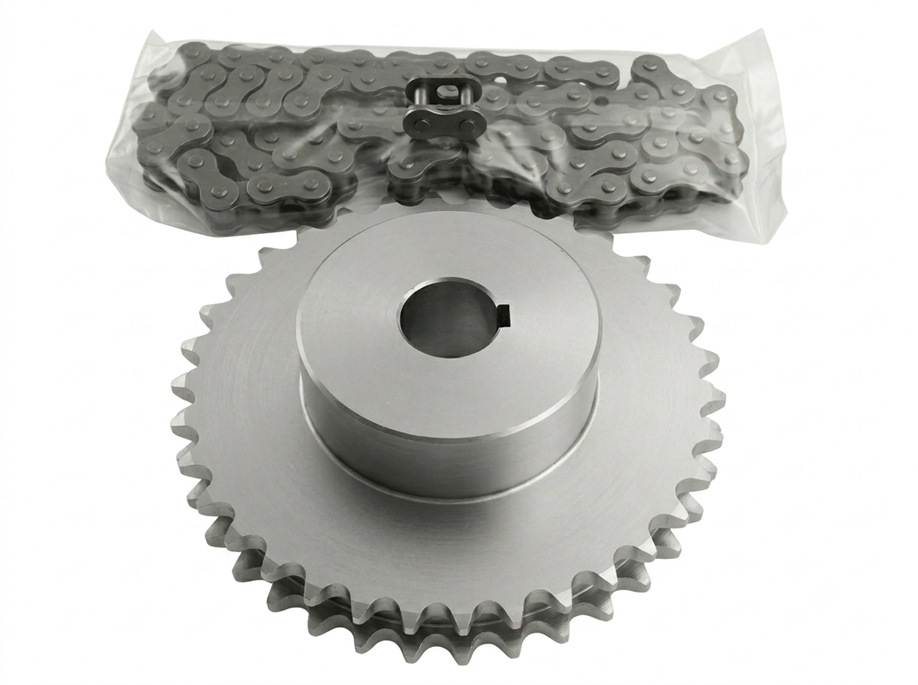

1x Sprocket & Chain set (Option of 30mm or 25.4mm bore)
Downloadable Resources
Product details
Economy chain drive operator for sprung balanced roller shutters up to 600 kg, with mechanical limits and quick release mechanisms.
| FEATURES | |
|
|
| SPECIFICATIONS | |
| VOLTAGE | 220V AC (1 phase); 380V AC (3 phase) |
| CURRENT INPUT | 3A |
| OUTPUT TORQUE | Dependant on Drive Ratio |
| MOTOR PROTECTION | Thermal overload protection |
| MOTOR OUTPUT | 0.55kW |
| IP RATING | IP20 |
| MOTOR SPROCKET | 9 Tooth |
| DOOR SPROCKET
(2 options) |
38T 10B1 (Standard)
48T 10B1 (for heavier doors) |
| SPEED | ±8Rpm (at supplied drive ratio) |
| DUTY CYCLE | < 5 operations / Hr (Dependant on door size) |
NB: Picture used for illustrative purposes and may vary slightly from actual item.
(The Company reserves the right to amend product specifications and information without notice.)
ITEMS IN KIT:
1x Motor with Push button station (4m cable)
1x Lockable Push button box
1x Mounting Kit
1x Remote Kit (2 remotes)
1x Sprocket & Chain set (Option of 30mm or 25.4mm bore)
Downloadable Resources
Additional information
| Weight | 800 kg |
|---|---|
| Voltage | 230V 1Phase, 400V 3Phase |
| Sprocket | 38 Tooth (25.4mm), 38 Tooth (30mm), 45 tooth (30mm) |
