ECONO 500DC 24V Motor KIT- Roller Shutter
R9 728,43 Incl. VAT
Economy chain drive DC operator Kit with 24V battery backup, for spring balanced roller shutters up to 420 kg.
Features
- Economical Battery Backed automation solution
- Mechanical limit switches
- Emergency Hand chain override
- Voltage: 220V 50Hz, single phase
- Controller with command buttons Open / Stop / Close
- Integrated High current transformer
- Includes 2x 12V SLA battery (24VDC)
- Onboard radio receiver
Specifications
| Voltage | 220V AC supply voltage; 24V DC motor drive |
|---|---|
| Output torque | Dependant on drive ratio |
| Motor protection | Thermal cut-out |
| Motor output | 0.24 kW |
| Speed | ±8 rpm at supplied drive ratio |
| Duty cycle | < 5 operations / hr (dependant on door size) |
| Maximum door weight | 127 mm collar – up to 420 kg (assuming minimum 50% spring loading) |
NB: Picture used for illustrative purposes and may vary slightly from actual item.
(The Company reserves the right to amend product specifications and information without notice.)

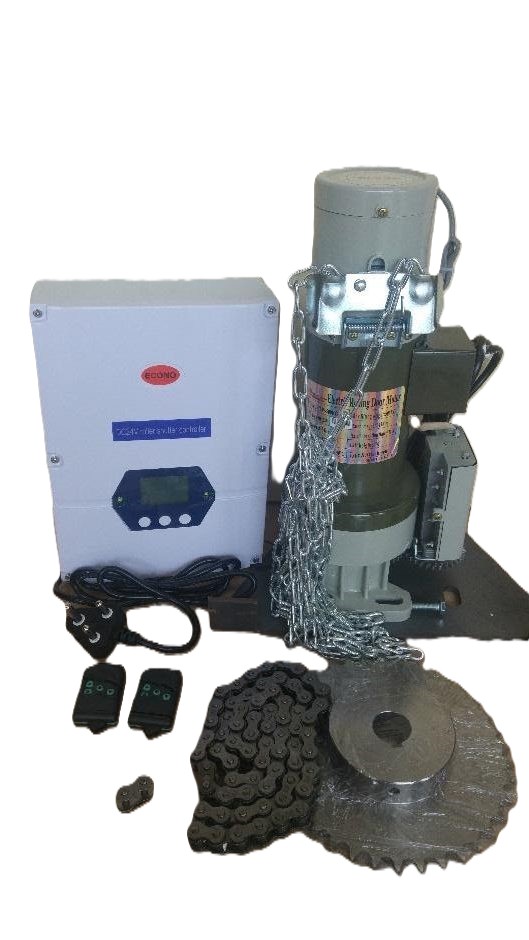

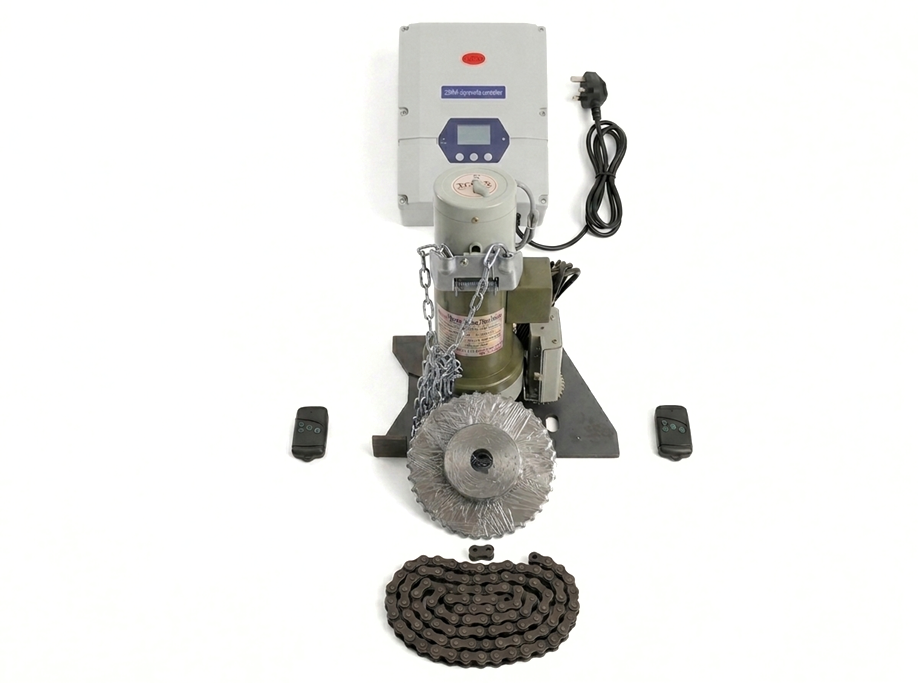

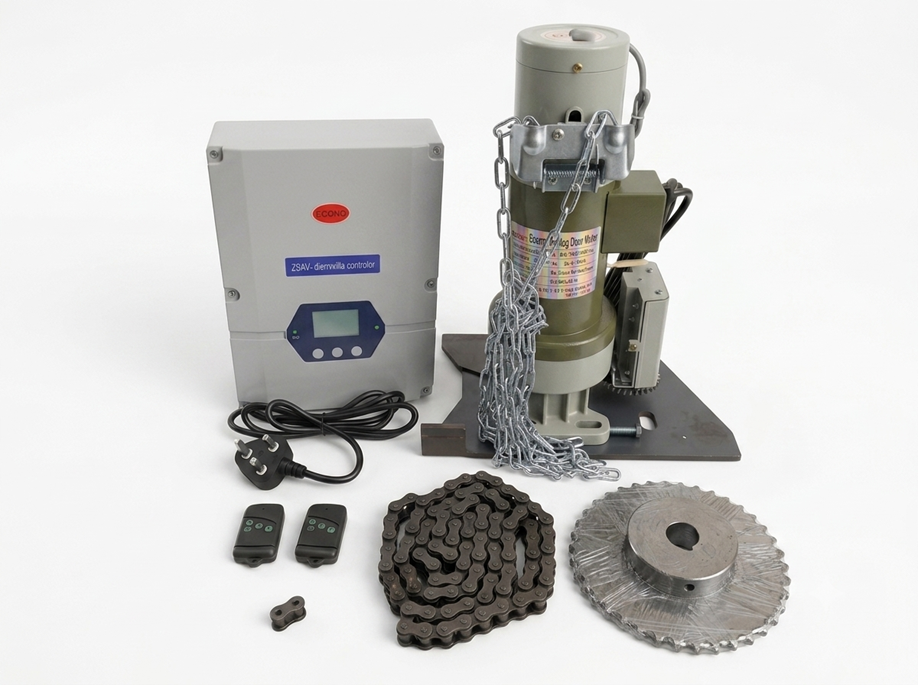

ITEMS IN KIT:

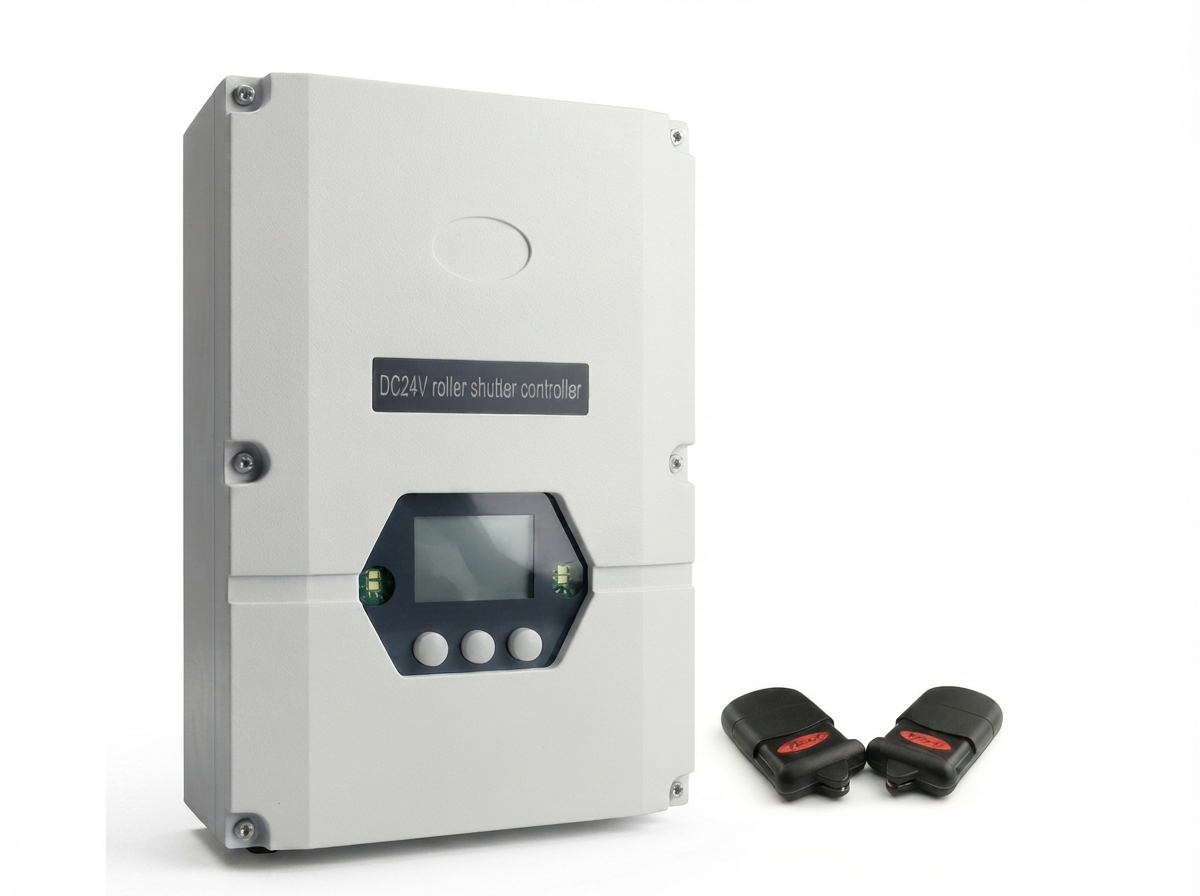

1x Motor with LCD Controller (4m cable)
1x Mounting Kit
2x Econo remotes

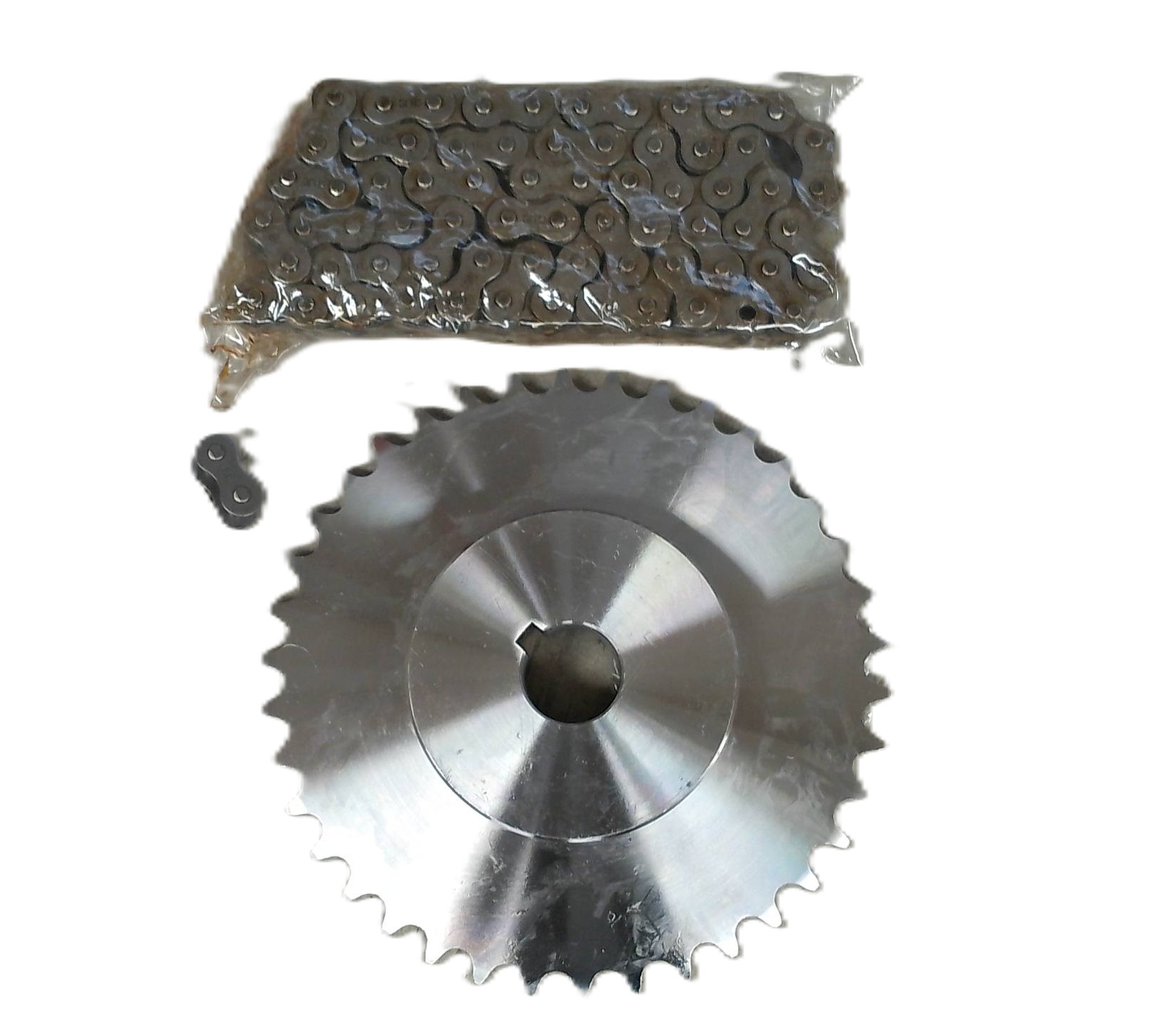

1x Sprocket & Chain set (Option of 30mm or 25.4mm bore)
Product details
Economy chain drive DC operator Kit with 24V battery backup, for spring balanced roller shutters up to 420 kg.
Features
- Economical Battery Backed automation solution
- Mechanical limit switches
- Emergency Hand chain override
- Voltage: 220V 50Hz, single phase
- Controller with command buttons Open / Stop / Close
- Integrated High current transformer
- Includes 2x 12V SLA battery (24VDC)
- Onboard radio receiver
Specifications
| Voltage | 220V AC supply voltage; 24V DC motor drive |
|---|---|
| Output torque | Dependant on drive ratio |
| Motor protection | Thermal cut-out |
| Motor output | 0.24 kW |
| Speed | ±8 rpm at supplied drive ratio |
| Duty cycle | < 5 operations / hr (dependant on door size) |
| Maximum door weight | 127 mm collar – up to 420 kg (assuming minimum 50% spring loading) |
NB: Picture used for illustrative purposes and may vary slightly from actual item.
(The Company reserves the right to amend product specifications and information without notice.)
ITEMS IN KIT:
1x Motor with LCD Controller (4m cable)
1x Mounting Kit
2x Econo remotes
1x Sprocket & Chain set (Option of 30mm or 25.4mm bore)
Additional information
| Weight | 420 kg |
|---|---|
| Sprocket | 38 Tooth (25.4mm), 38 Tooth (30mm) |
