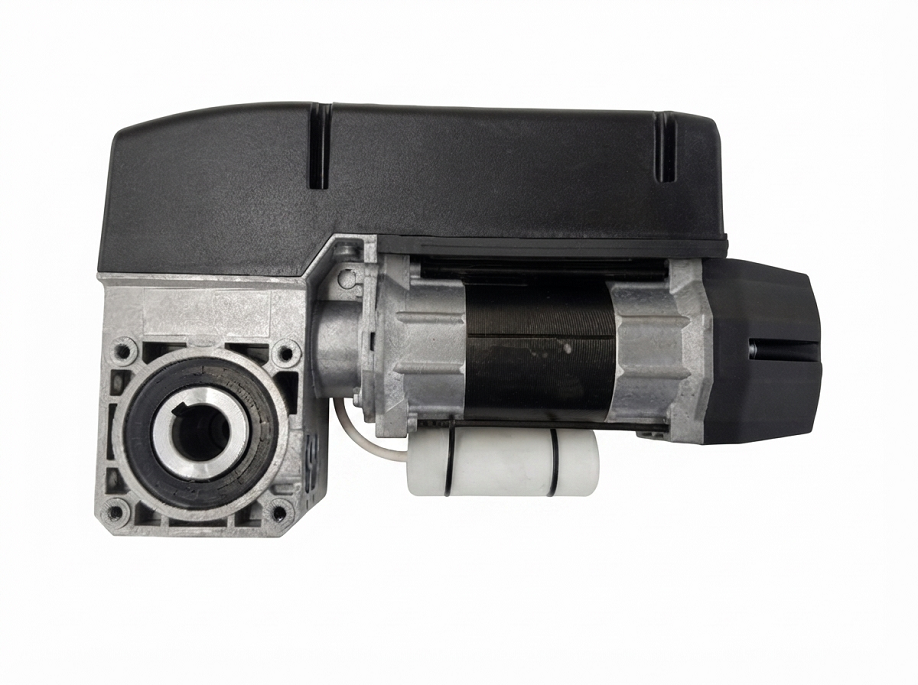

DTWC DIRECT DRIVE 230V Automation for Sprung Roller Shutters
230V direct drive automation for spring balanced roller shutters, with integrated mechanical limit switches and manual override.
Features
- Integrated mechanical limit switches
- Thermal overload protection
- Crank manual override (crank or chain)
- Robust, strong and durable
- Flexible control options
- Up to 13 revolutions
- Noise level <70 dB
- 1 phase 230V
Specifications
| Voltage | 230V AC @ 50 Hz (single phase) |
|---|---|
| Current rating | 6.5 A |
| Torque | 140 Nm |
| Motor output | 0.45 kW |
| Speed | 12 rpm |
| Duty cycle | 25% < operations / hr (dependent on door size) |
| Shaft diameter | 30 mm (8 mm keyway) |
| Protection | IP54 |
| Operator dimensions | 361 x 105 x 245 mm |
| Weight | Approx. 16 kg |
(The Company reserves the right to amend product specifications and information without notice.)
Downloadable Resources
Product details
230V direct drive automation for spring balanced roller shutters, with integrated mechanical limit switches and manual override.
Features
- Integrated mechanical limit switches
- Thermal overload protection
- Crank manual override (crank or chain)
- Robust, strong and durable
- Flexible control options
- Up to 13 revolutions
- Noise level <70 dB
- 1 phase 230V
Specifications
| Voltage | 230V AC @ 50 Hz (single phase) |
|---|---|
| Current rating | 6.5 A |
| Torque | 140 Nm |
| Motor output | 0.45 kW |
| Speed | 12 rpm |
| Duty cycle | 25% < operations / hr (dependent on door size) |
| Shaft diameter | 30 mm (8 mm keyway) |
| Protection | IP54 |
| Operator dimensions | 361 x 105 x 245 mm |
| Weight | Approx. 16 kg |
(The Company reserves the right to amend product specifications and information without notice.)
Downloadable Resources
Additional information
| Weight | 16 kg |
|---|---|
| Dimensions | 36,1 × 10,5 × 24,5 cm |
