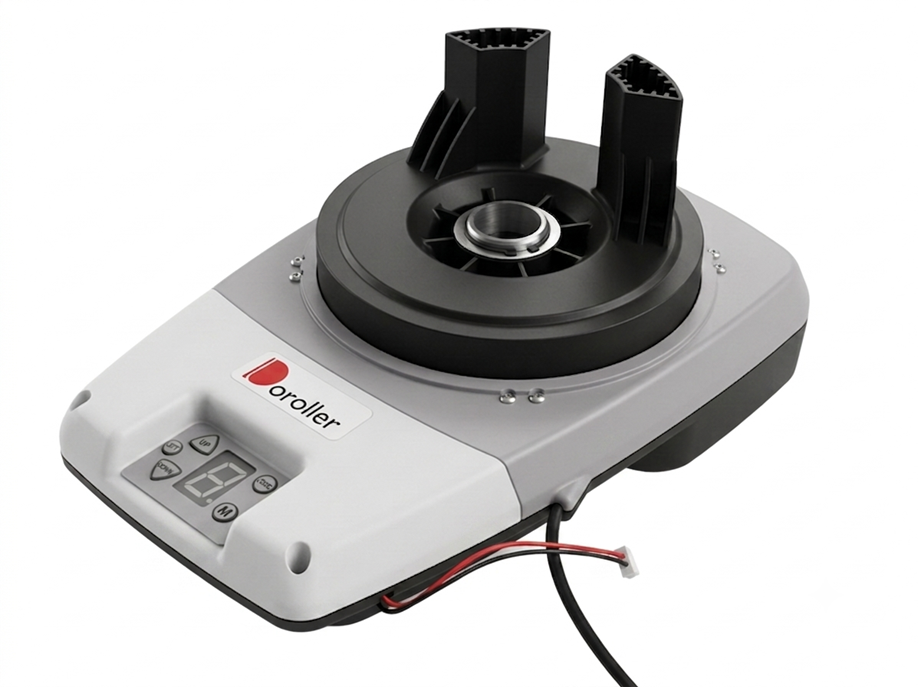

Dor Roller 45 Motor Kit (Battery Backup Optional)

All-in-one roll-up garage door operator with quick opening, obstacle sensing, LED lighting and optional battery backup.

Features

• Easy installation
• Quick and easy step-by-step programming
• Soft start and soft stop
• Obstacle sensing feature
• Accurate limits
• Quick opening
• LED lighting
• Battery backup optional
• Emergency Pull Cord Release



Specifications

Specifications: Easy Installation; Quick & Easy Step By Step Programming; Soft Start Soft Stop; Speed: 200 mm/sec approx; Protection: Internal Use.



Supply voltage	230V AC – 50Hz
Control voltage	24VDC
Motor power	200W
Drive	450 N
Speed	200 mm/sec approx
Lift capacity	Doors up to 12 m² and 120 kg
Temperature range	-20°C to +50°C
Protection	Internal use
Courtesy light	12pc LED
Remote controls	433 MHz rolling code; range ±25 m
Battery backup	24V 3.5Ah optional

(The Company reserves the right to amend product specifications and information without notice.)



ITEMS IN STANDARD PACKAGE:

1x Dor Roller 45 Motor

2x Remotes 4Channel

1x Weight bar

1x Set Extension Forks

**Battery Backup Optional
