Econo Push Button Station
Replacement Push button station for AC model Econo Drive systems
Open- Stop- Close command
Exposure: IP20 (internal use only)
(The Company reserves the right to amend product specifications and information without notice.)
Category: Push Button Stations

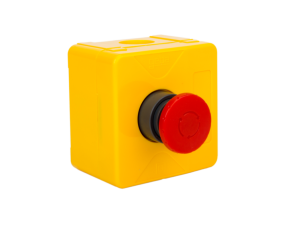

KDT1-N
Emergency Stop Push Button (Mushroom Type)
Product Description
The Marantec KDT 1-N is a surface-mounted emergency stop push button (mushroom head type) designed for industrial door and gate control systems.
- It is a safety control device used to immediately stop door or motor operation
- Features a latching (maintained) emergency stop function
- Suitable for:
- Marantec control panels (CS series, etc.)
- Third-party control systems
Official description:
“Emergency impact mushroom, latching, surface installation, plastic housing, IP65”
Functional Operation
- Pressing the red mushroom head:
- Activates emergency stop (NC contact opens)
- Stops door movement immediately
- The button remains latched (locked) after activation
- Requires manual reset (twist/pull) to resume operation
This complies with standard industrial emergency stop safety principles
Key Features
- Red mushroom emergency button on yellow background
- Latching (detent) function
- Surface-mounted housing
- Weather-resistant (IP65)
- Universal compatibility with control systems
- Designed for industrial environments
The design meets requirements for emergency stop devices
Technical Specifications
Electrical
- Connection type: Conventional wiring
- Number of contacts: 1
- Contact type:
1 NC (normally closed)
Mechanical / Construction
- Housing material: Plastic
- Push button type: Emergency stop (mushroom head)
- Mounting type: Surface mount
Environmental
- Protection rating: IP65
- Dust-tight
- Protected against water jets
Dimensions & Weight
| Parameter | Specification |
|---|---|
| Width | 80 mm |
| Height | 80 mm |
| Depth | 80 mm |
| Weight | 0.125 kg |
Scope of Supply
- Emergency stop push button unit (complete assembly)
Compatibility
- Works with:
- Marantec CS control panels
- Industrial door operators (STA, MDF, etc.)
- Third-party control systems
Designed as a universal emergency stop accessory
Application Areas
- Industrial sectional doors
- Roller shutter doors
- Automated gates
- Machinery requiring emergency stop control
Summary
| Parameter | Specification |
|---|---|
| Product | KDT 1-N |
| Type | Emergency stop push button |
| Function | Immediate stop (latching) |
| Contact type | 1 NC |
| Mounting | Surface mount |
| Material | Plastic housing |
| Protection | IP65 |
| Dimensions | 80 × 80 × 80 mm |
| Weight | 0.125 kg |
| Compatibility | Universal (Marantec + others) |
(The Company reserves the right to amend product specifications and information without notice.)

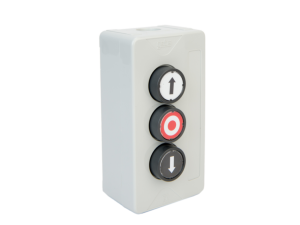

Push Button Station – KDT3
The Marantec KDT 3 Push Button Station is:
A manual control device used to operate industrial doors or gates, providing direct commands to open, stop, or close the door system.
The KDT3 provides 3 control inputs:
- OPEN (Up)
- STOP
- CLOSE (Down)
These signals are sent directly to the door controller unit
Momentary contact operation
- Buttons are spring-return (momentary)
- Signal only active while pressed
Prevents unintended continuous operation
Technical Specifications
Electrical
- Connection type: Conventional wiring
- Number of contacts: 3
- Contact type:
- 2 × Normally Open (NO)
- 1x Normally Closed (NC)
- Signal type: Potential-free (dry contact)
Functional
- Functions:
- Open / Stop / Close
- Operation mode: Momentary push buttons
Mechanical
- Housing: Plastic enclosure
- Mounting: Surface mount
- Dimensions:
- Width: 72 mm
- Height: 139.5 mm
- Protection rating: IP65
Meaning:
- Dust-tight
- Protected against water jets
- Suitable for industrial environments
(The Company reserves the right to amend product specifications and information without notice.)
