Wireless Safety Edge Device

R5 980,00 Incl. VAT

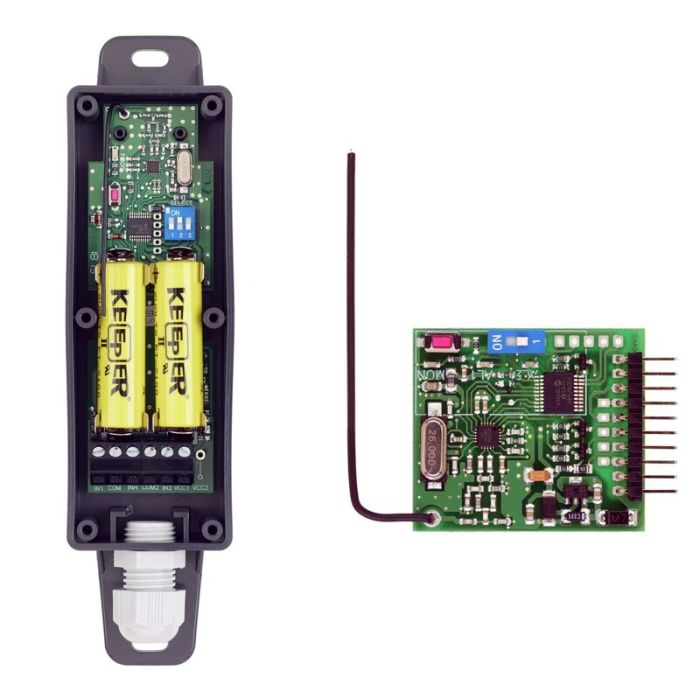

2-channel radio transmission system pluggable 868 MHz, consisting of: 2-channel plug-in receiver
for CS 320 and 2-channel transmitter for 2 signals (NC/NO/OSE/8.2 kOhm), battery operated, IP67

Specifications: Wireless Transmission; Simple and fast installation; Two-channel system; Protection: Tx: IP55

FEATURES
Wireless Transmission Simple and fast installation Two-channel system Includes 2 batteries May be selected via DIP switch
SPECIFICATIONS
RADIO FREQUENCY	868.95 MHz or 869.85 MHz
NOMINAL VOLTAGE Rx	5V DC
BATTERY TYPE Tx	AA 3.6V
PROTECTION Tx	IP55
CABLING	Conventional
STORAGE Maximum	7 Transmitters
TEMPERATURE	-20º to +55ºC
RANGE	10m
MEASUREMENTS Tx	183 x 51 x 36mm

(The Company reserves the right to amend product specifications and information without notice.)

Downloadable Resources

Download Spec Sheet

CategoriesControls, Safety & Accessories, Safety Accessories

Product details

2-channel radio transmission system pluggable 868 MHz, consisting of: 2-channel plug-in receiver
for CS 320 and 2-channel transmitter for 2 signals (NC/NO/OSE/8.2 kOhm), battery operated, IP67

Specifications: Wireless Transmission; Simple and fast installation; Two-channel system; Protection: Tx: IP55

FEATURES
Wireless Transmission Simple and fast installation Two-channel system Includes 2 batteries May be selected via DIP switch
SPECIFICATIONS
RADIO FREQUENCY	868.95 MHz or 869.85 MHz
NOMINAL VOLTAGE Rx	5V DC
BATTERY TYPE Tx	AA 3.6V
PROTECTION Tx	IP55
CABLING	Conventional
STORAGE Maximum	7 Transmitters
TEMPERATURE	-20º to +55ºC
RANGE	10m
MEASUREMENTS Tx	183 x 51 x 36mm
