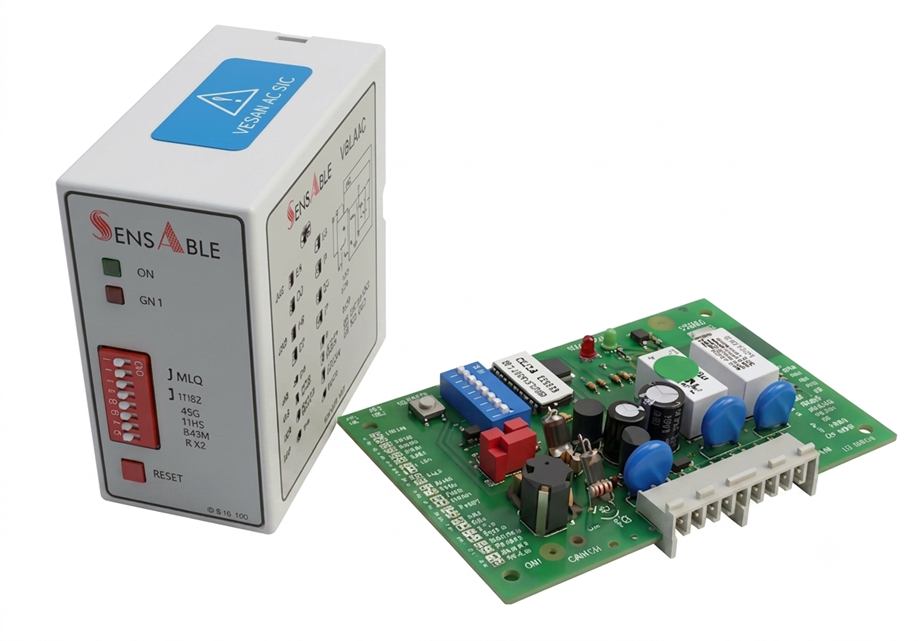

Vehicle Detectors
Price range: R2 242,50 through R2 587,50 Incl. VAT
Product Description
Sensable vehicle detectors are inductive loop detectors used to detect the presence and movement of vehicles in:
- Parking barriers
- Boom gates
- Industrial doors
- Access control systems
Operating Principle
- A loop cable is installed in the ground to form a rectangular loop
- The detector monitors the loop’s inductance field
- When a vehicle passes over:
- Metal mass changes the field
- Detector activates output relay
Key Features
From SensAble Sensors (ULD Vehicle Detector series):
- Availbale as 12-24V model or 230V model
- Wide self-tuning range
- Strong loop field strength
- High interference immunity
- Adjustable sensitivity levels
- Automatic sensitivity boost
- Permanent presence detection
- Selectable output modes (pulse / presence)
- LED indicators:
- Power (green)
- Output (red)
- Reset button (front panel)
- Built-in surge and loop protection
- Dry Contact Relay output (5A @ 230V)
Output Configuration
- Relay 1: Presence (fail-safe)
- Relay 2: Pulse or presence (selectable)
- Presence modes:
- Permanent
- Limited time
- Pulse modes:
- Entry
- Exit

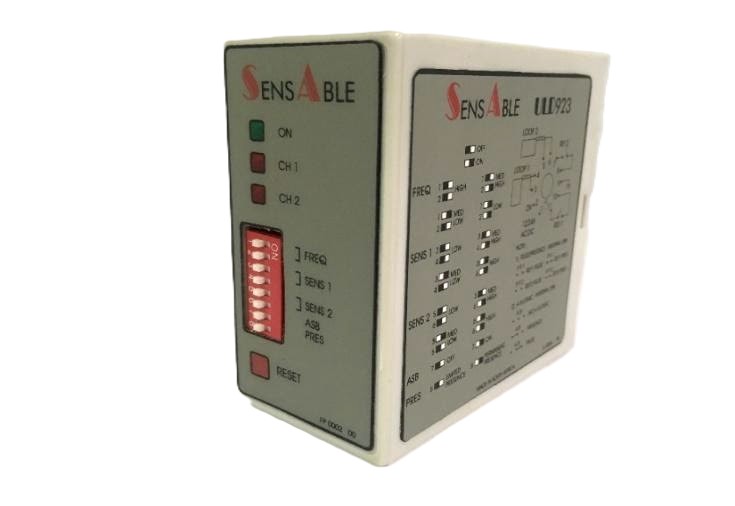

Available Models (Common Sensable Range)
| Model | Description |
|---|---|
| ULD911 | Single channel (230 V) |
| ULD913 | Single channel (12–24 V) |
| ULD921 | Dual channel (230 V) |
| ULD923 | Dual channel (12–24 V) |
Dual-channel models allow:
- Direction detection (entry/exit logic)
Summary
| Parameter | Specification |
|---|---|
| Type | Inductive loop vehicle detector |
| Voltage | 12–24 V AC/DC (or 230 V models) |
| Output | 2 relay outputs |
| Relay rating | 5 A @ 230 V AC |
| Response time | ~100 ms |
| Sensitivity | 4-step adjustable |
| Temp range | −40 °C to +80 °C |
| Dimensions | 76 × 40 × 75 mm |
| Mounting | Plug-in base / DIN |
| Channels | 1 or 2 |
(The Company reserves the right to amend product specifications and information without notice.)
