Marantec Wireless Wall Transmitter Command 131 Multi-Bit 868Mhz

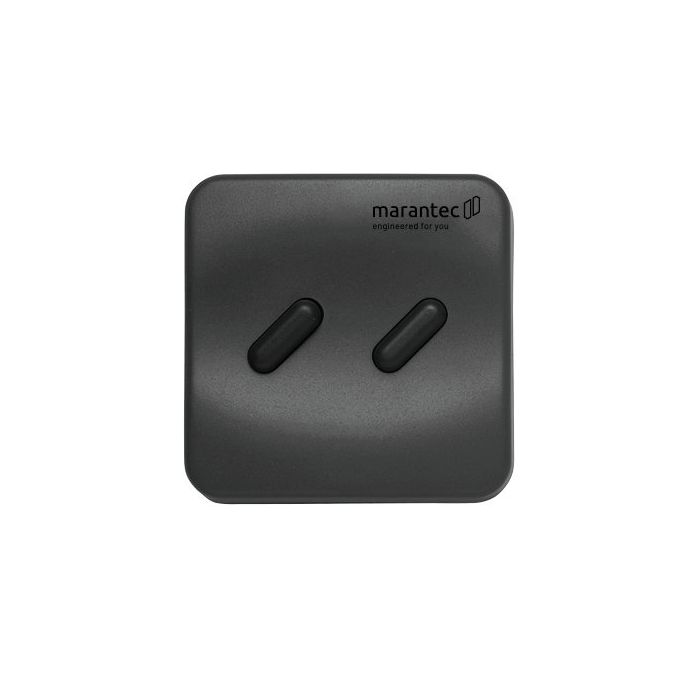

The Marantec Multi‑Bit 131 Wall Transmitter offers a compact, wall-mounted control option for garage doors & gates. It provides reliable, secure wireless operation with dual buttons for multi-function control. Ideal for indoor installation in homes or commercial garages.
The Marantec Command 131 is a:
- Wireless wall-mounted transmitter (not a wired switch)
- Works as a fixed indoor remote control
- Sends commands via Marantec Multi-Bit radio system
- Used for:
- Garage doors
- Industrial doors
- Gate automation systems
It behaves like a “wall remote” rather than a physical wired button.
Technical Summary
- 2 Command buttons
- Multi-Bit RF technology
- Direct code transfer remote to remote
- 48-bit encrypted signal (~70 million code combinations)
- Frequency: 868.3 MHz
- Range: 30-100m depending on environment
- Battery: CR2032 3V x1
- Protection: IP20
- Temperature: -20°C to +60°C
- Size: 80 x 80 x 27 mm
Materials
- ABS plastic housing
- Compact push-button front panel
(The Company reserves the right to amend product specifications and information without notice.)
Downloadable Resources
Product details
The Marantec Multi‑Bit 131 Wall Transmitter offers a compact, wall-mounted control option for garage doors & gates. It provides reliable, secure wireless operation with dual buttons for multi-function control. Ideal for indoor installation in homes or commercial garages.
The Marantec Command 131 is a:
- Wireless wall-mounted transmitter (not a wired switch)
- Works as a fixed indoor remote control
- Sends commands via Marantec Multi-Bit radio system
- Used for:
- Garage doors
- Industrial doors
- Gate automation systems
It behaves like a “wall remote” rather than a physical wired button.
Technical Summary
- 2 Command buttons
- Multi-Bit RF technology
- Direct code transfer remote to remote
- 48-bit encrypted signal (~70 million code combinations)
- Frequency: 868.3 MHz
- Range: 30-100m depending on environment
- Battery: CR2032 3V x1
- Protection: IP20
- Temperature: -20°C to +60°C
- Size: 80 x 80 x 27 mm
Materials
- ABS plastic housing
- Compact push-button front panel
(The Company reserves the right to amend product specifications and information without notice.)
Downloadable Resources
Additional information
| Dimensions | 8 × 8 × 2,7 cm |
|---|
