KD 30-40-24 Sprocket & Chain Drive- Hand Chain

Price range: R38 927,50 through R46 230,00 Incl. VAT

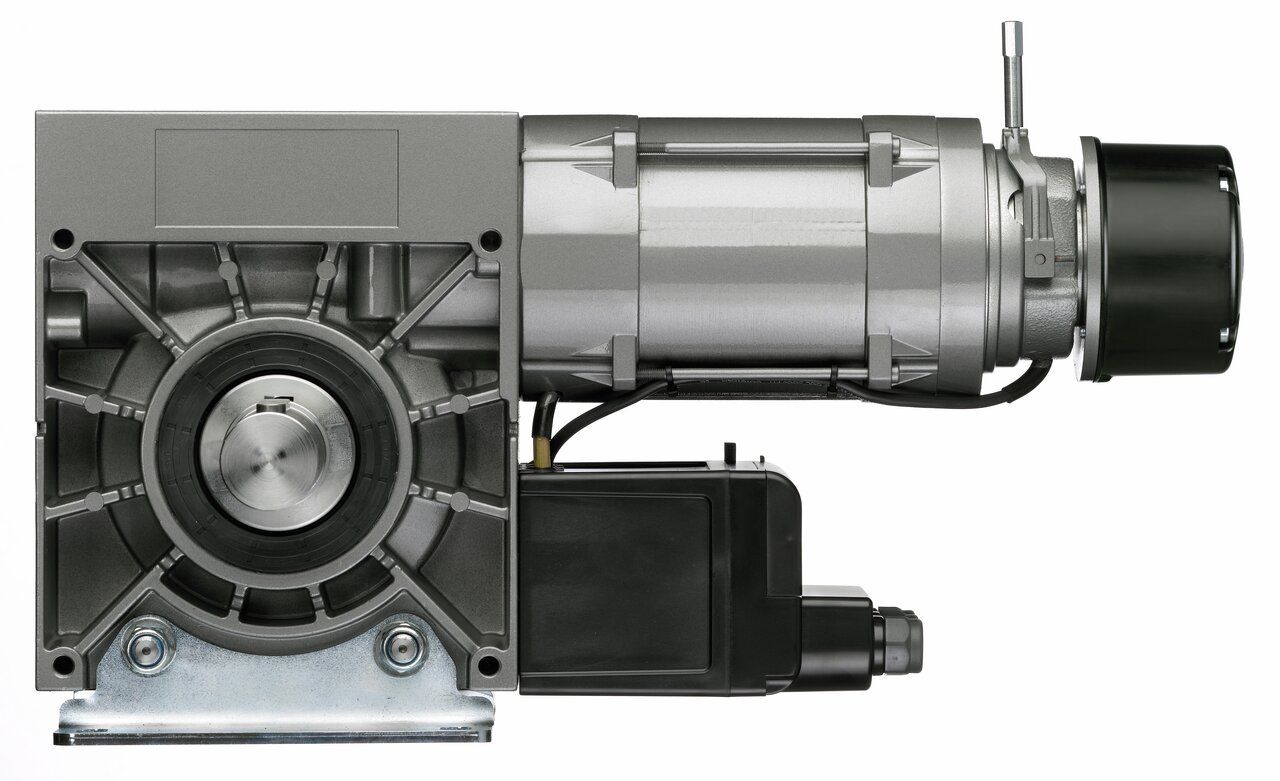

The KD 30 is a sprocket and chain drive system, engineered for demanding industrial environments, delivering powerful and reliable operations for heavy-duty roller shutter doors.  Its robust worm drive gearbox ensures precise control and consistent performance.

Built to offer strength, durability, and operational stability.  For enhanced safety, the use of an external safety catch device is recommended.

Key Features

  • High torque for heavy-duty doors
  • Durable worm drive gearbox
  • 7m Cable Loom
  • Built for commercial applications
  • Customisable output torque by changing sprocket & chain ratio
  • Reliable performance under load
  • Includes KD30 Mounting bracket

No sprocket & chain included- may be configured as 2:1 or 3:1

Spring Assisted Doors with Collar <220mm

Max lifting @ 2:1 ratio - 1,000kgs
Max lifting @ 3:1 ratio - 1,600kgs



KD 30 — Specifications

SPECIFICATION VALUE
Power Supply

400V (Three Phase)

Torque

400Nm

Speed

24Rpm

Power

1.7Kw

(The Company reserves the right to amend product specifications and information without notice.)

NB: Images used for illustrative purposes and may vary slightly from actual item.



Downloadable Resources

Download Manual

SKUIND115734F CategoriesIndustrial Door Motors, KD Chain Drives

Product details

The KD 30 is a sprocket and chain drive system, engineered for demanding industrial environments, delivering powerful and reliable operations for heavy-duty roller shutter doors.  Its robust worm drive gearbox ensures precise control and consistent performance.

Built to offer strength, durability, and operational stability.  For enhanced safety, the use of an external safety catch device is recommended.

Key Features

  • High torque for heavy-duty doors
  • Durable worm drive gearbox
  • 7m Cable Loom
  • Built for commercial applications
  • Customisable output torque by changing sprocket & chain ratio
  • Reliable performance under load
  • Includes KD30 Mounting bracket

No sprocket & chain included- may be configured as 2:1 or 3:1

Spring Assisted Doors with Collar <220mm

Max lifting @ 2:1 ratio - 1,000kgs
Max lifting @ 3:1 ratio - 1,600kgs



KD 30 — Specifications

SPECIFICATION VALUE
Power Supply

400V (Three Phase)

Torque

400Nm

Speed

24Rpm

Power

1.7Kw

(The Company reserves the right to amend product specifications and information without notice.)

NB: Images used for illustrative purposes and may vary slightly from actual item.



Downloadable Resources

Download Manual

High-performance chain drive operator built for heavy-duty commercial roller shutter doors with enhanced strength and reliability.

Additional information

Controller

CS320 LCD Controller, NO CONTROLLER
