HEAT & SMOKE DETECTOR For use with EMC-3C

R8 843,50 Incl. VAT

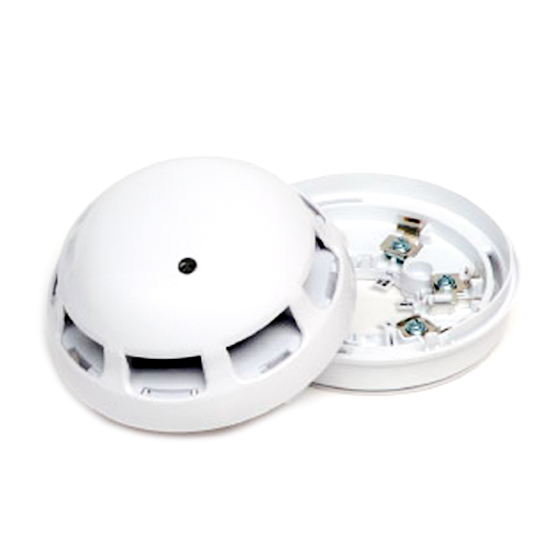

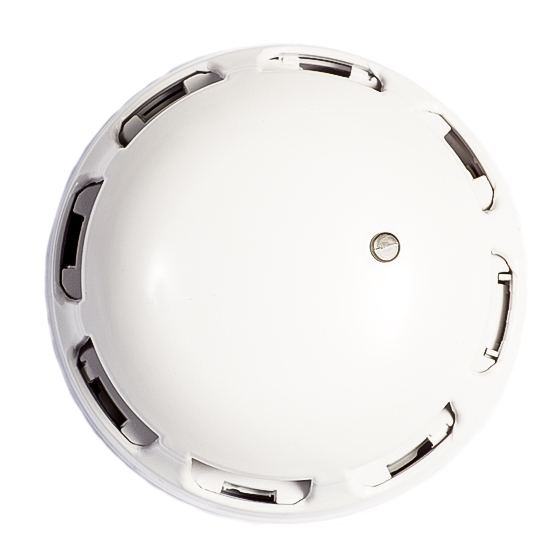

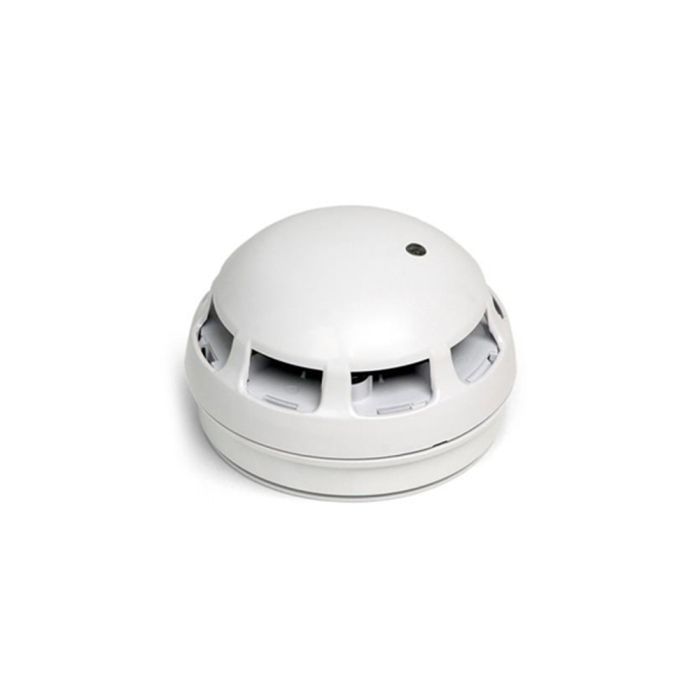

Combined heat and smoke detector with integral sounder for use with the EMC-3C fire door interface panel.

FEATURES
3 adjustable temperature settings Variable sound output LED indication 3 adjustable settings for smoke density Selectable response
SPECIFICATIONS
TEMPERATURE SETTINGS	Heat Setting 1: 58°C Rate of Rise; Heat Setting 2: 58°C Fixed; Heat Setting 3: 90° Fixed; Sounds 2 & 3 can alternatively be provided with an Alternating Tone (800-970Hz) or Sweep Up Tone (800-970Hz) respectively.
NORMAL OPERATION	LED flashes every 20 seconds
ALARM	LED is continually illuminated until reset
DIMENSIONS	65mm x 105mm

(The Company reserves the right to amend product specifications and information without notice.)

CategoryFire Door

Product details

Combined heat and smoke detector with integral sounder for use with the EMC-3C fire door interface panel.

FEATURES
3 adjustable temperature settings Variable sound output LED indication 3 adjustable settings for smoke density Selectable response
SPECIFICATIONS
TEMPERATURE SETTINGS	Heat Setting 1: 58°C Rate of Rise; Heat Setting 2: 58°C Fixed; Heat Setting 3: 90° Fixed; Sounds 2 & 3 can alternatively be provided with an Alternating Tone (800-970Hz) or Sweep Up Tone (800-970Hz) respectively.
NORMAL OPERATION	LED flashes every 20 seconds
ALARM	LED is continually illuminated until reset
DIMENSIONS	65mm x 105mm

(The Company reserves the right to amend product specifications and information without notice.)

Combined heat and smoke detector with integral sounder for use with the EMC-3C fire door interface panel.

Specifications: 3 Adjustable Temperature Settings; Variable Sound Output; LED Indication
