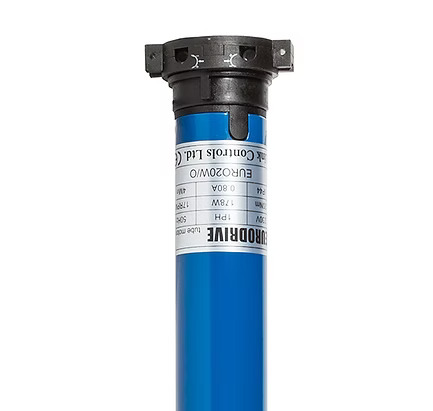

EURODRIVE 20 TUBULAR MOTOR (No Manual Override)
R3 570,75 Incl. VAT
Silent tubular motor with mechanical limits, multiple control options. Adaptors sizes to suit octagonal and round tube.
Specifications: Silent Operation; Mechanical Limits; Adaptors to suit tube Ø 60mm to 101.6mm; Current: 0.8 A; Torque: 20 Nm; Speed: 17 RPM
| FEATURES | |
|
|
| SPECIFICATIONS | |
| POWER SUPPLY | 230V 50Hz |
| CURRENT | 0.8 A |
| POWER | 178 W |
| TORQUE | 20 Nm |
| SPEED | 17 RPM |
| LIFTING CAPACITY | 30kg @ 100mm; 35kg @ 90mm; 35kg @ 80mm; 45kg @ 70mm; 50kg @ 60mm; 55kg @ 50mm |
| STANDARD ADAPTORS FOR TUBES | 101.6mm x 3.66mm (94mm); 101.6mm x 1.63mm (97mm); 89mm x 1.5mm (85mm); 80mm x 1.5mm (76mm); 80mm x 2mm (75mm); 70mm x 1.5mm (67mm); 64mm x 1.5mm (60mm); 63mm x 1mm (60mm); 60mm x 1.5mm (56mm); 70mm Octagonal (67mm); 60mm Octagonal (57mm); 50mm Octagonal (48mm) |
(The Company reserves the right to amend product specifications and information without notice.)
