ECONO 750DC-24V Motor KIT - Roller Shutter
Price range: R12 298,68 through R21 970,75 Incl. VAT
Features
- Economical Battery Backed automation solution
- Mechanical limit switches
- Hand chain override
- Plug and play advanced control available
- Controller with command buttons Open / Stop / Close
- Integrated High current transformer
- Includes 2x 12V SLA battery (24VDC)
- Onboard radio receiver
Specifications
| Voltage | 220V AC (24VDC) |
|---|---|
| Current input | 3A |
| Output torque | Dependent on drive ratio |
| Motor protection | Thermal overload protection |
| Motor output | 0.3 kW |
| IP rating | IP20 |
| Motor sprocket | 9 tooth |
Door sprocket
(2 options) |
38T 10B1 (standard)
45T 10B1 (for heavier doors) |
| Speed | ±8 rpm at supplied drive ratio |
| Duty cycle | < 5 operations / hr (dependant on door size) |
| Maximum door weight | 127 mm collar – up to 600 kg (assuming minimum 50% spring loading) |
NB: Picture used for illustrative purposes and may vary slightly from actual item.
(The Company reserves the right to amend product specifications and information without notice.)

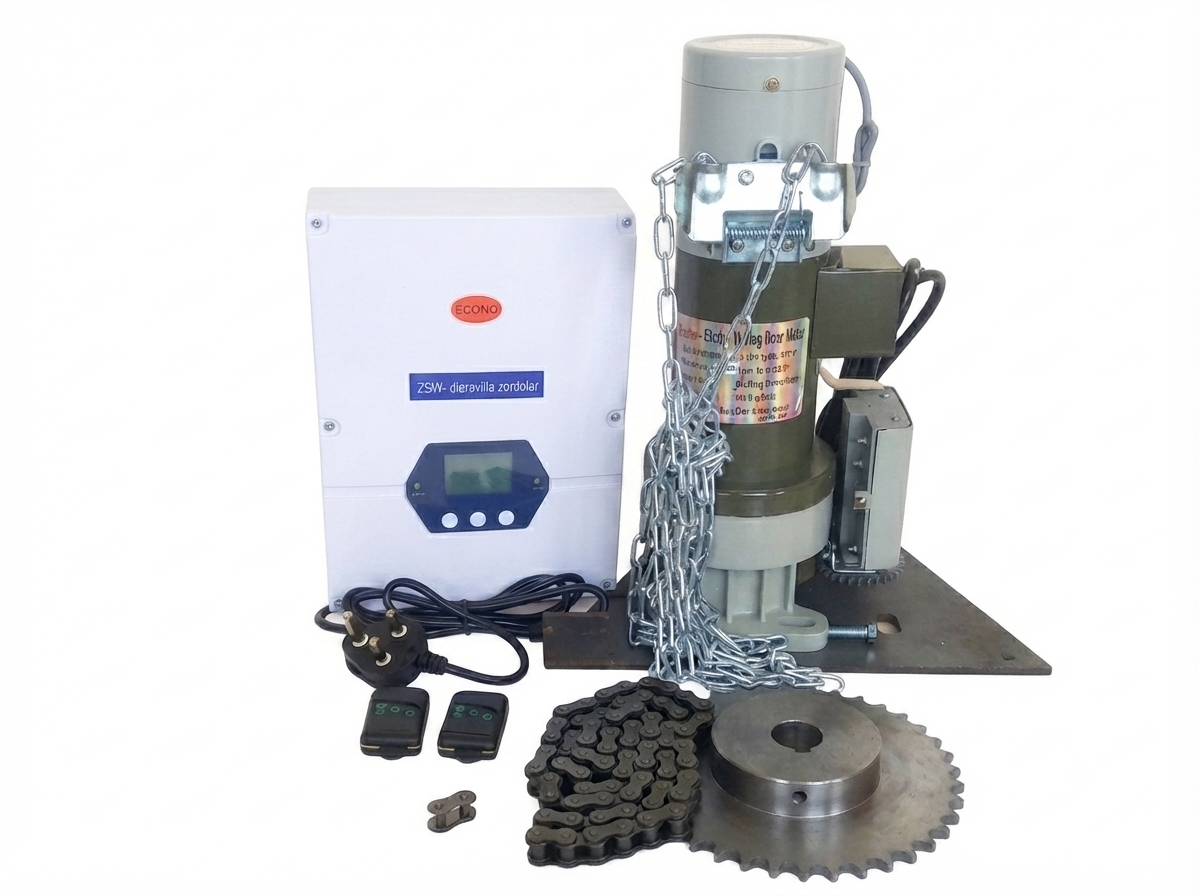

ITEMS IN KIT:
1x Motor with LCD Controller (4m cable)
1x Mounting Kit
2x Econo remotes
1x Sprocket & Chain set (Option of 30mm or 25.4mm bore)
Downloadable Resources
Product details
Features
- Economical Battery Backed automation solution
- Mechanical limit switches
- Hand chain override
- Plug and play advanced control available
- Controller with command buttons Open / Stop / Close
- Integrated High current transformer
- Includes 2x 12V SLA battery (24VDC)
- Onboard radio receiver
Specifications
| Voltage | 220V AC (24VDC) |
|---|---|
| Current input | 3A |
| Output torque | Dependent on drive ratio |
| Motor protection | Thermal overload protection |
| Motor output | 0.3 kW |
| IP rating | IP20 |
| Motor sprocket | 9 tooth |
Door sprocket
(2 options) |
38T 10B1 (standard)
45T 10B1 (for heavier doors) |
| Speed | ±8 rpm at supplied drive ratio |
| Duty cycle | < 5 operations / hr (dependant on door size) |
| Maximum door weight | 127 mm collar – up to 600 kg (assuming minimum 50% spring loading) |
NB: Picture used for illustrative purposes and may vary slightly from actual item.
(The Company reserves the right to amend product specifications and information without notice.)
ITEMS IN KIT:
1x Motor with LCD Controller (4m cable)
1x Mounting Kit
2x Econo remotes
1x Sprocket & Chain set (Option of 30mm or 25.4mm bore)
Downloadable Resources
Additional information
| Weight | 590 kg |
|---|---|
| Sprocket | 38 Tooth (25.4mm), 38 Tooth (30mm), 45 tooth (30mm) |
