ECONO 600 Motor KIT - Roller Shutter

Economy chain drive operator for spring balanced roller shutters up to 600 kg, with mechanical limits and quick release mechanism.

Features

• Economical automation solution
• Mechanical limit switches
• Hand chain override
• Quick release mechanism
• 1 phase 220V and 3 phase 380V options
• Basic package includes Open / Stop / Close pushbutton and metal lock box
• Plug and play advanced control available

Specifications

Voltage	220V AC (1 phase); 380V AC (3 phase)
Current input	3A
Output torque	Dependant on drive ratio
Motor protection	Thermal overload protection
Motor output	0.3 kW
IP rating	IP20
Motor sprocket	9 tooth
Door sprocket	38T 10B1 standard
Speed	±8 rpm at supplied drive ratio
Duty cycle	< 5 operations / hr (dependant on door size)
Maximum door weight	127 mm collar – up to 600 kg (assuming minimum 50% spring loading)



NB: Picture used for illustrative purposes and may vary slightly from actual item.

(The Company reserves the right to amend product specifications and information without notice.)

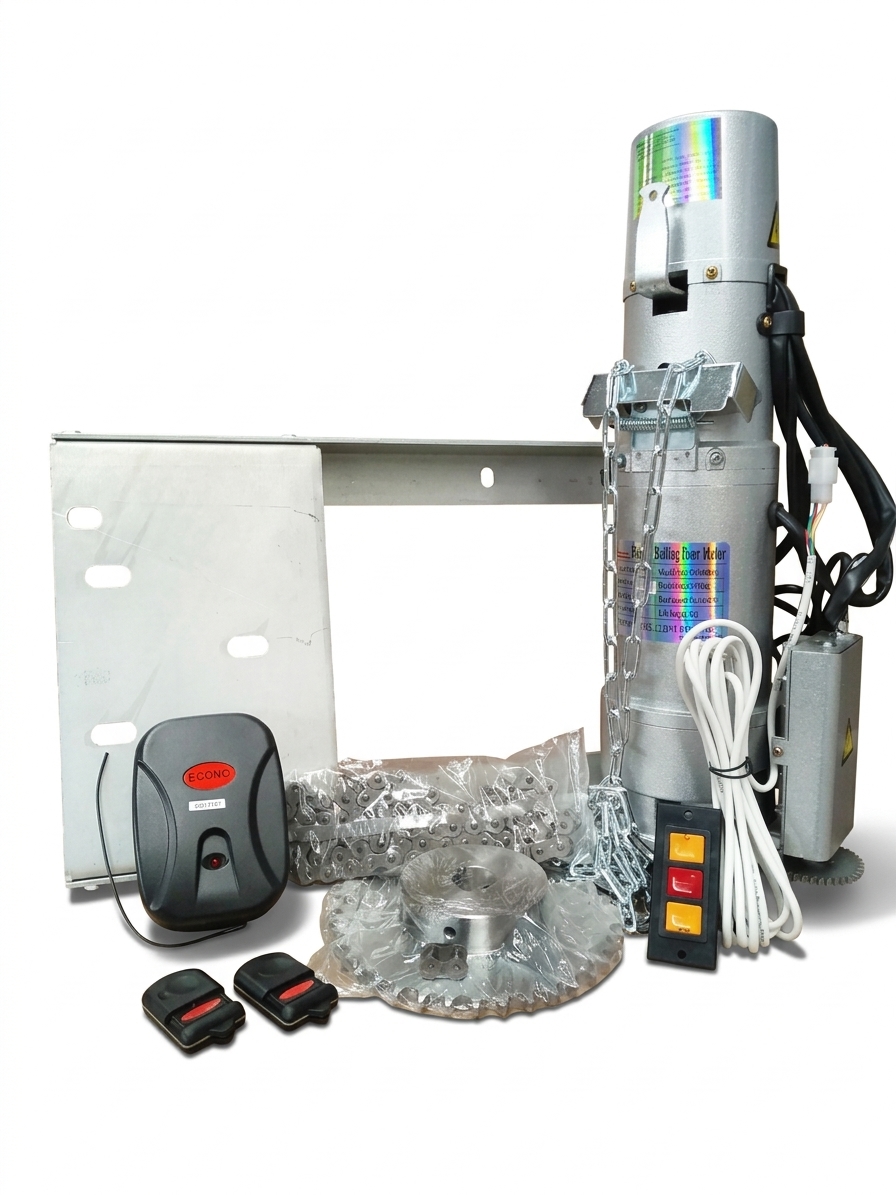

ITEMS IN KIT:

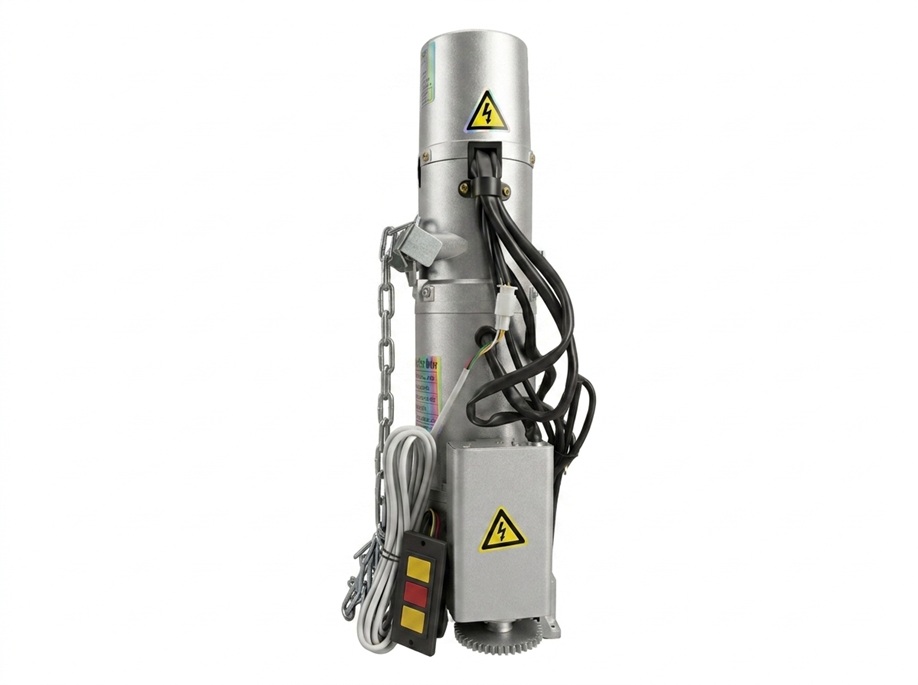

1x Motor with Push button station (4m cable)

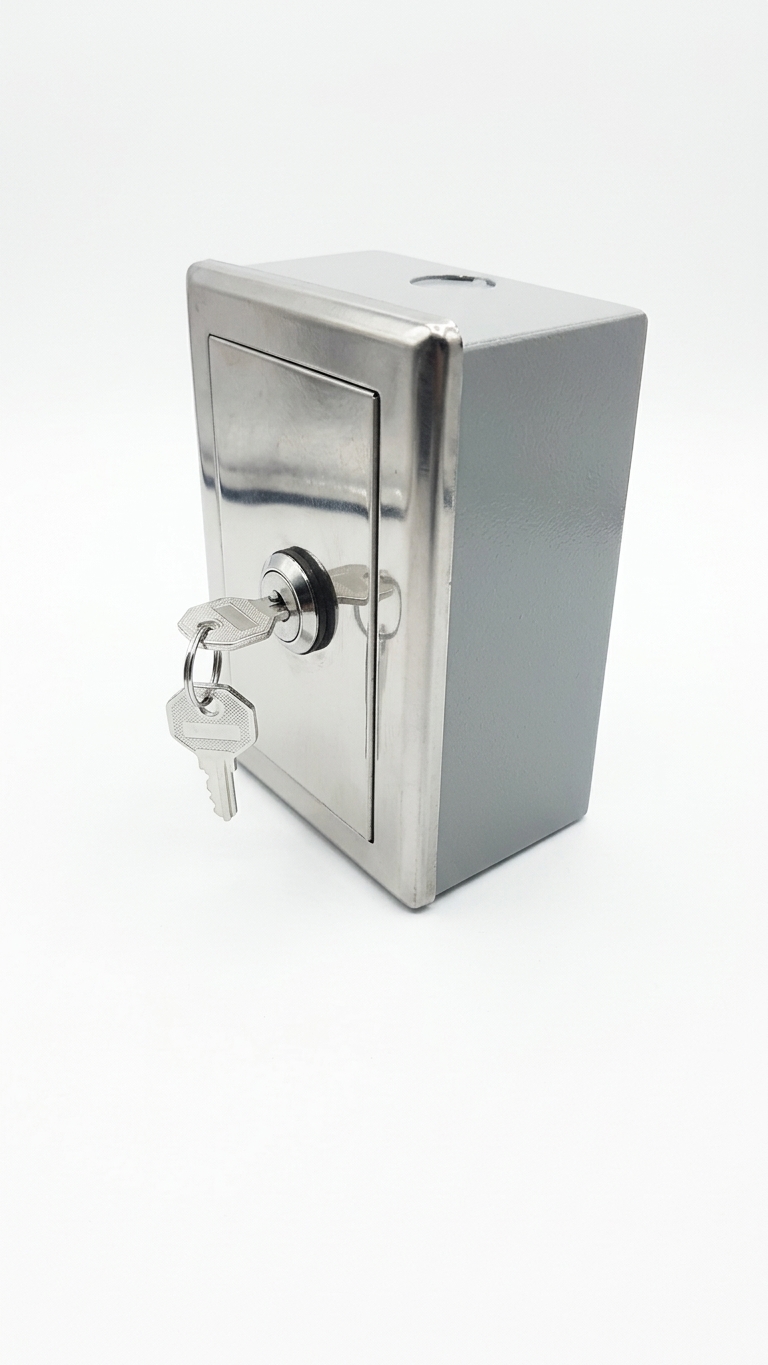

1x Lockable Push button box

1x Mounting Kit

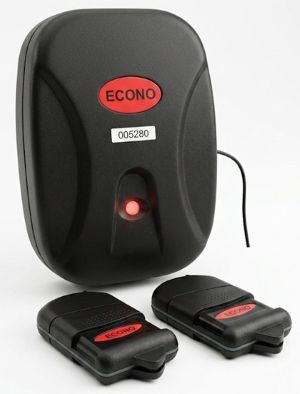

1x Remote Kit (2 remotes)

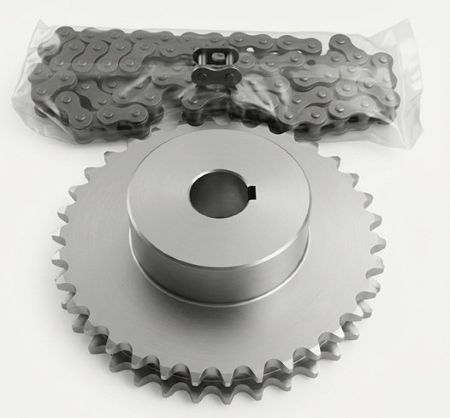

1x Sprocket & Chain set (Option of 30mm or 25.4mm bore)
