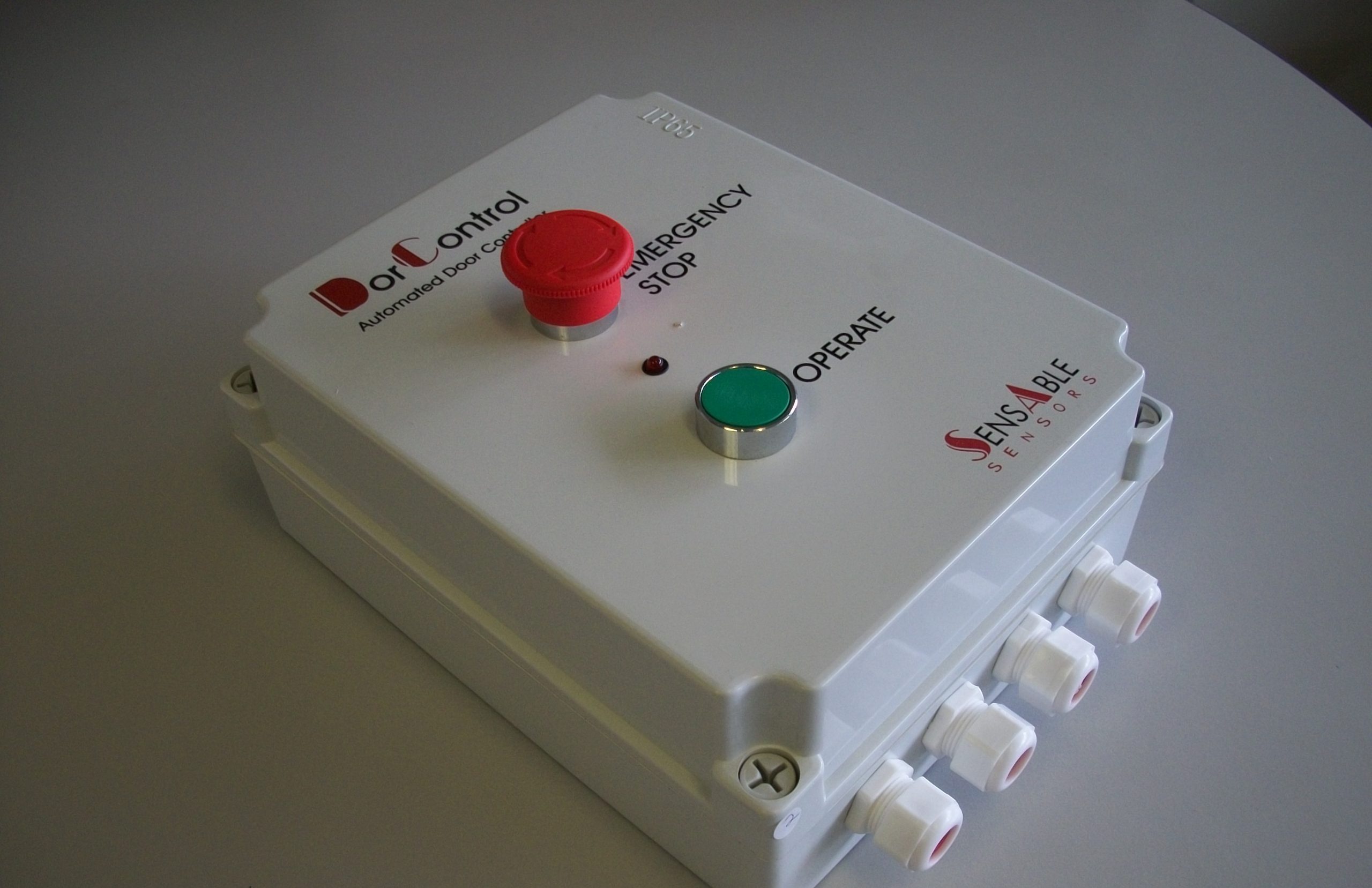

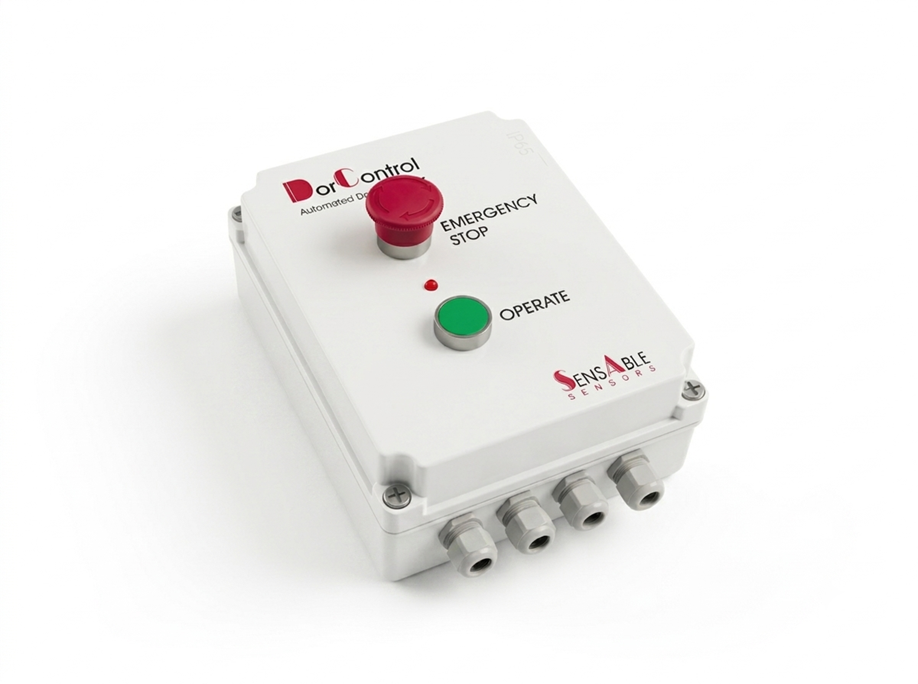

DorControl Automated Door Controller (230V & 400V Option)
Price range: R3 519,00 through R4 657,50 Incl. VAT
Automated door controller for industrial roller shutter, roll-up and sectional door systems, available in 1PH and 3PH.
Features
- Available in 1PH and 3PH
- Open / Close and Half Open commands
- Traffic light card optional
- Remote control function
- Safety cut-out circuit for Safety Edge Device
- Adjustable Run Time
- LED indications
- Auto close function
- Photocell facility
Specifications
| Voltage | 1PH 230V AC ±10%; 3PH 380V AC ±10% |
|---|---|
| Current input | 5A max |
| Motor output | 0.55 kW |
| Protection | IP65 |
| Dimensions | 160 x 240 x 90 mm |
| Accessory power supply | 24 DC 100 mA |
| Temperature range | -40°C to +80°C |
(The Company reserves the right to amend product specifications and information without notice.)
Downloadable Resources
Product details
Automated door controller for industrial roller shutter, roll-up and sectional door systems, available in 1PH and 3PH.
Features
- Available in 1PH and 3PH
- Open / Close and Half Open commands
- Traffic light card optional
- Remote control function
- Safety cut-out circuit for Safety Edge Device
- Adjustable Run Time
- LED indications
- Auto close function
- Photocell facility
Specifications
| Voltage | 1PH 230V AC ±10%; 3PH 380V AC ±10% |
|---|---|
| Current input | 5A max |
| Motor output | 0.55 kW |
| Protection | IP65 |
| Dimensions | 160 x 240 x 90 mm |
| Accessory power supply | 24 DC 100 mA |
| Temperature range | -40°C to +80°C |
(The Company reserves the right to amend product specifications and information without notice.)
Downloadable Resources
Additional information
| Dimensions | 16 × 24 × 9 cm |
|---|---|
| Voltage | 230V 1Phase, 400V 3Phase |
