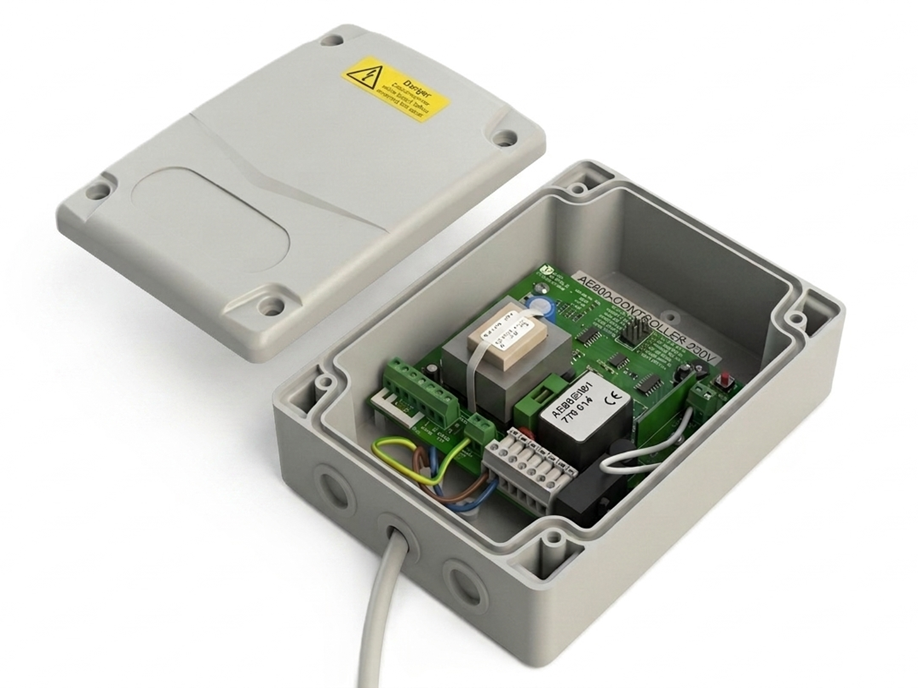

AE900 CONTROLLER for Tubular Motors
R2 530,00 Incl. VAT
The AE900 is 230V controller for tubular motors with integrated limits. (4 wire)
User Friendly & easy to Install
- Adjustable run time
- Selectable as impulse or Open / Close direction commands,
- Press & Hold or Press & release operating modes
- facility for low current infrared photocell
- facility for External Radio receiver
| SPECIFICATIONS | |
| VOLTAGE | 230 VAC +10% / -15% 50-60Hz |
| CURRENT INPUT | 5W |
| MOTOR OUTPUT | 1000W max |
| RECEIVER LOAD (ON MAINS) | 4.4W max |
| MAXIMUM NUMBER OF STORED TRANSMITTERS | 1000 |
| TEMPERATURE RANGE | -10ºC to +55ºC |
| FUSE | 6.3A anti-surge |
| DIMENSIONS | 145 x 300 x 85mm |
| MAXIMUM MOTOR LOAD | 1000W (230VAC) |
| MAXIMUM LIGHT LOAD | 500W (230VAC) |
(The Company reserves the right to amend product specifications and information without notice.)
Downloadable Resources
Product details
The AE900 is 230V controller for tubular motors with integrated limits. (4 wire)
User Friendly & easy to Install
- Adjustable run time
- Selectable as impulse or Open / Close direction commands,
- Press & Hold or Press & release operating modes
- facility for low current infrared photocell
- facility for External Radio receiver
| SPECIFICATIONS | |
| VOLTAGE | 230 VAC +10% / -15% 50-60Hz |
| CURRENT INPUT | 5W |
| MOTOR OUTPUT | 1000W max |
| RECEIVER LOAD (ON MAINS) | 4.4W max |
| MAXIMUM NUMBER OF STORED TRANSMITTERS | 1000 |
| TEMPERATURE RANGE | -10ºC to +55ºC |
| FUSE | 6.3A anti-surge |
| DIMENSIONS | 145 x 300 x 85mm |
| MAXIMUM MOTOR LOAD | 1000W (230VAC) |
| MAXIMUM LIGHT LOAD | 500W (230VAC) |
(The Company reserves the right to amend product specifications and information without notice.)
Downloadable Resources
Additional information
| Dimensions | 14,5 × 30 × 8,5 cm |
|---|
